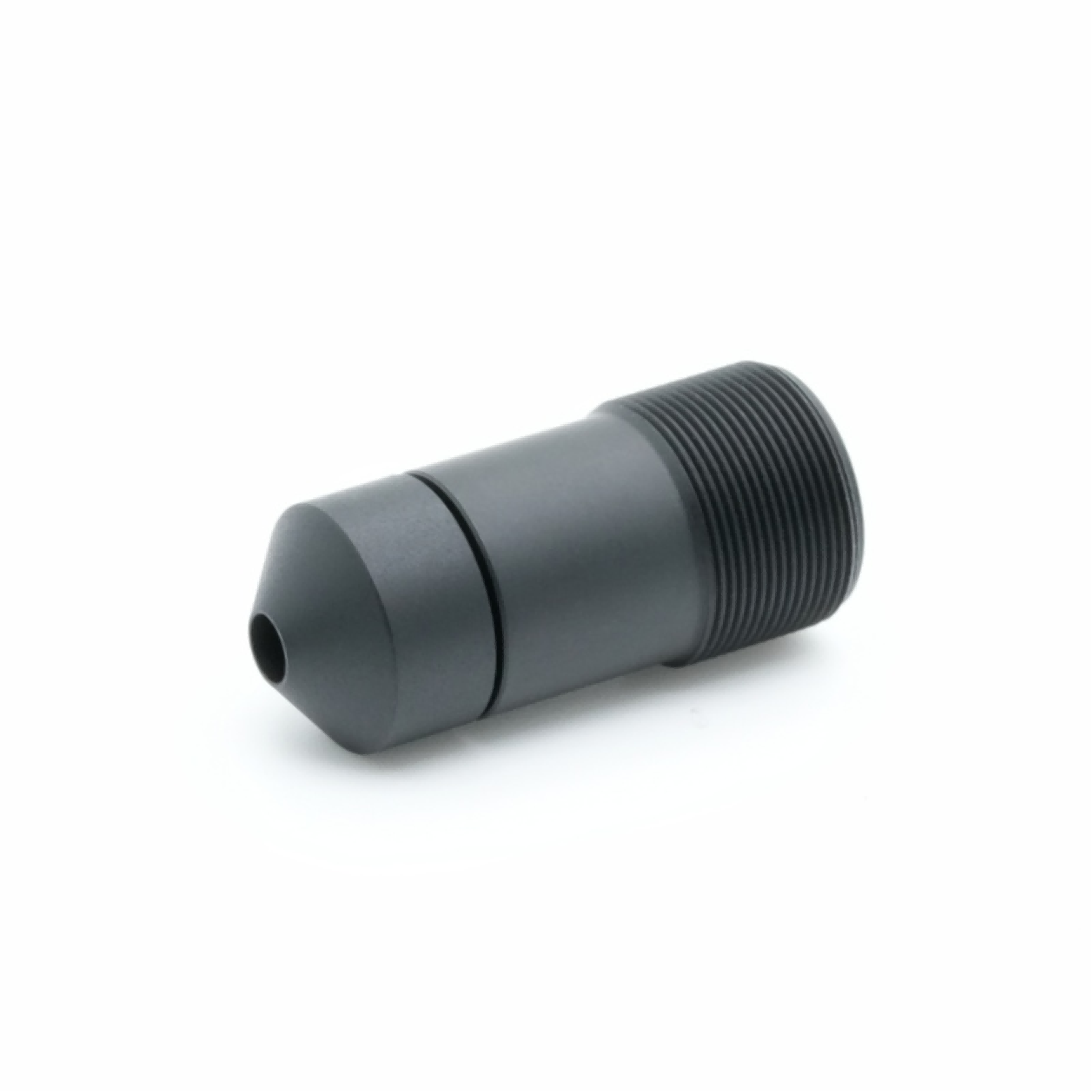

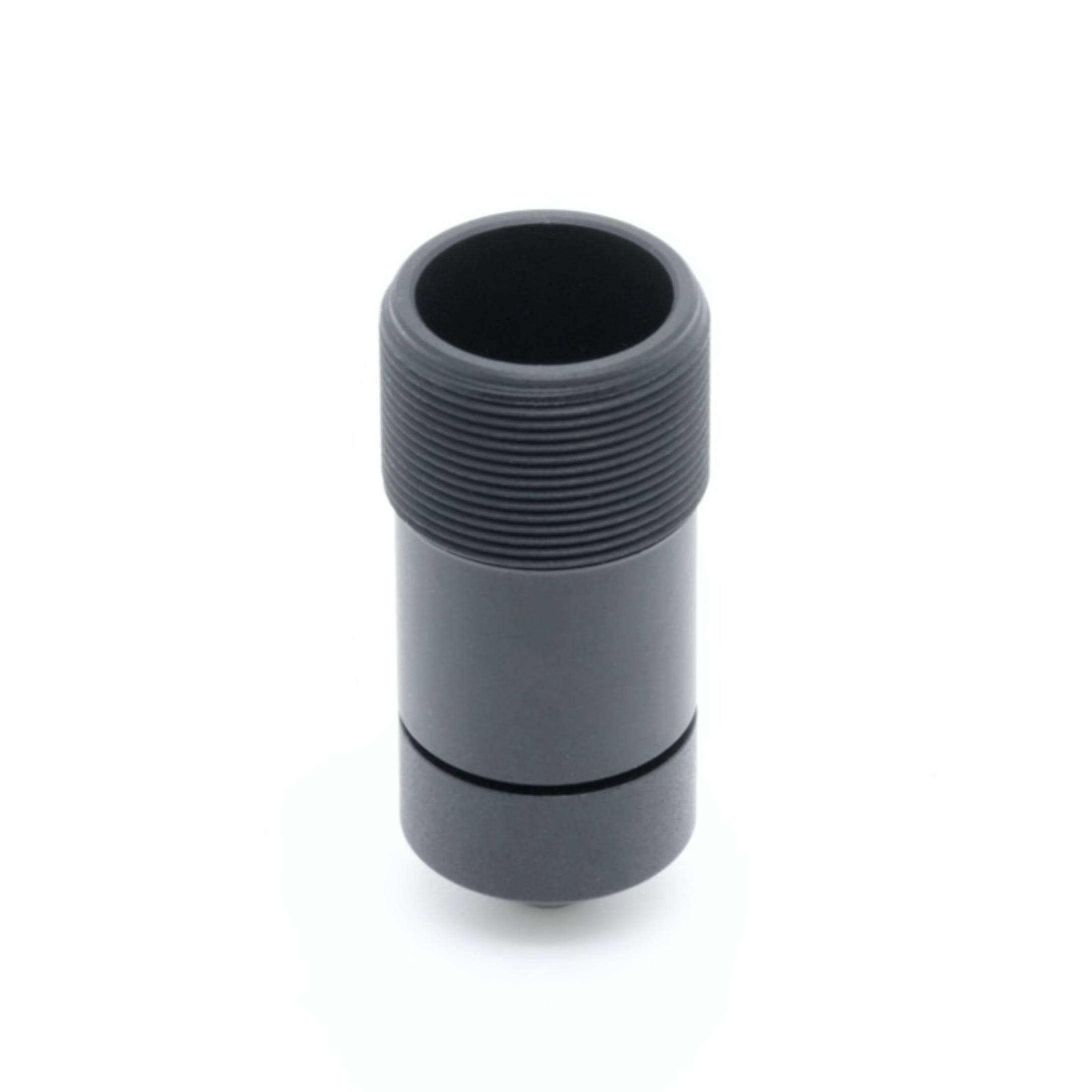

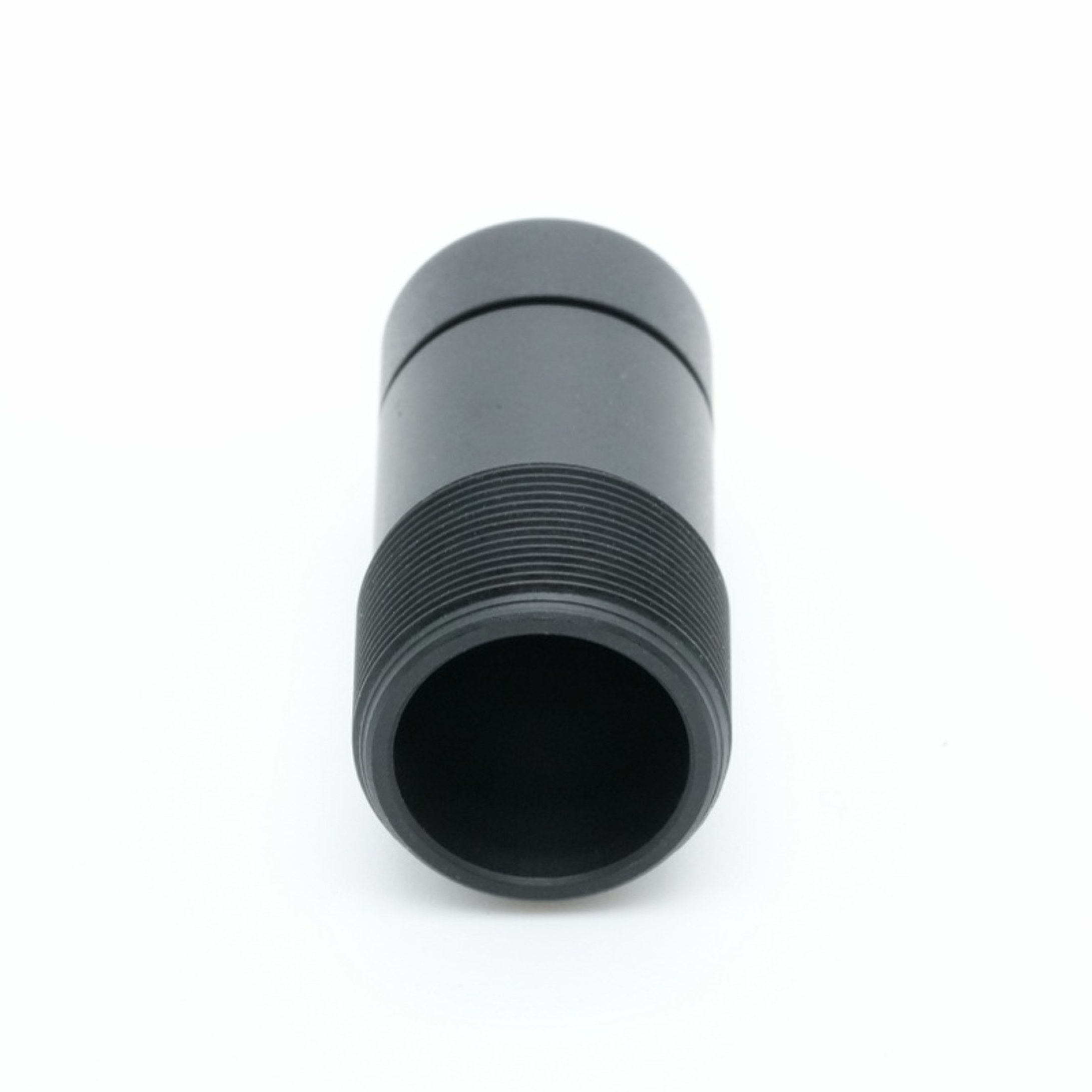

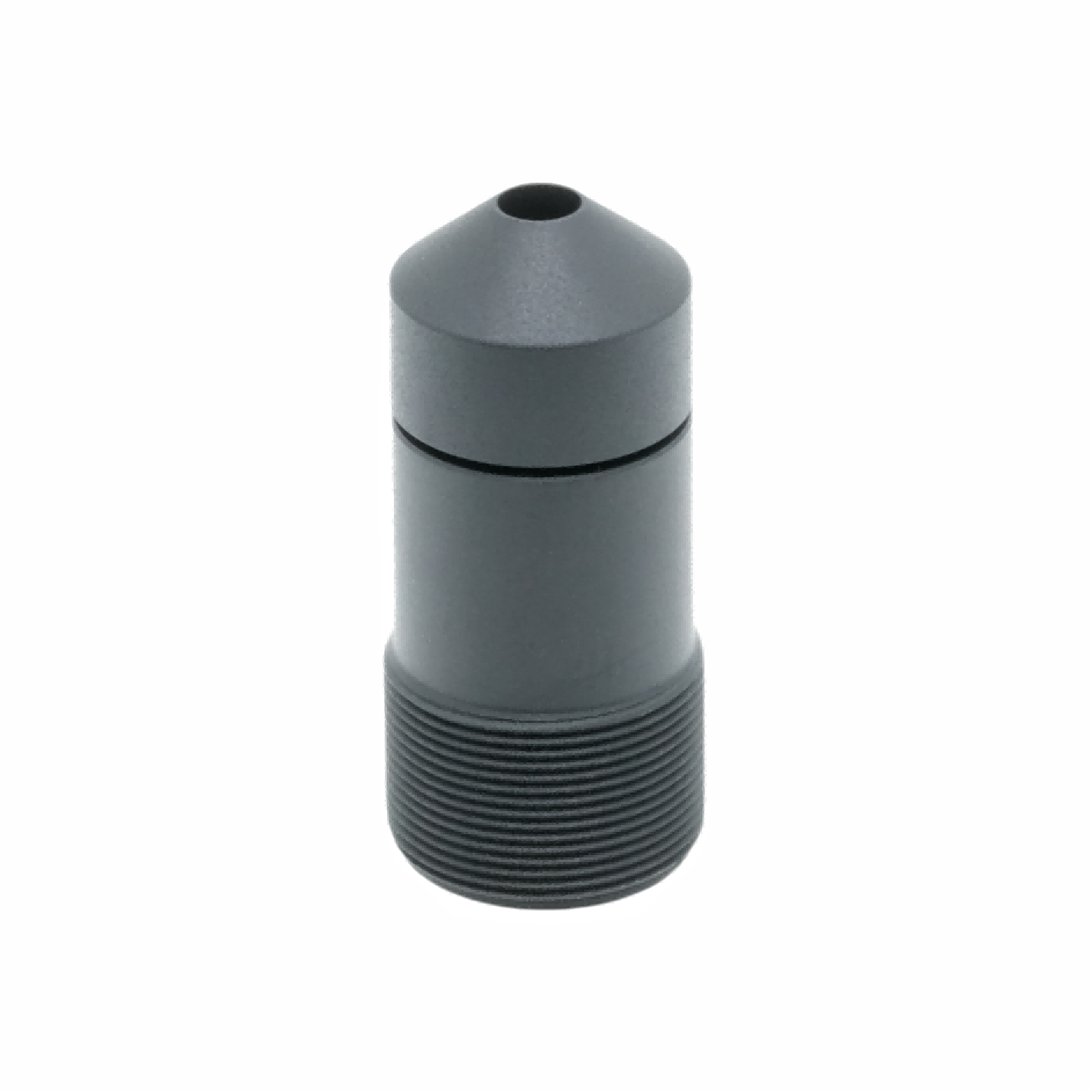

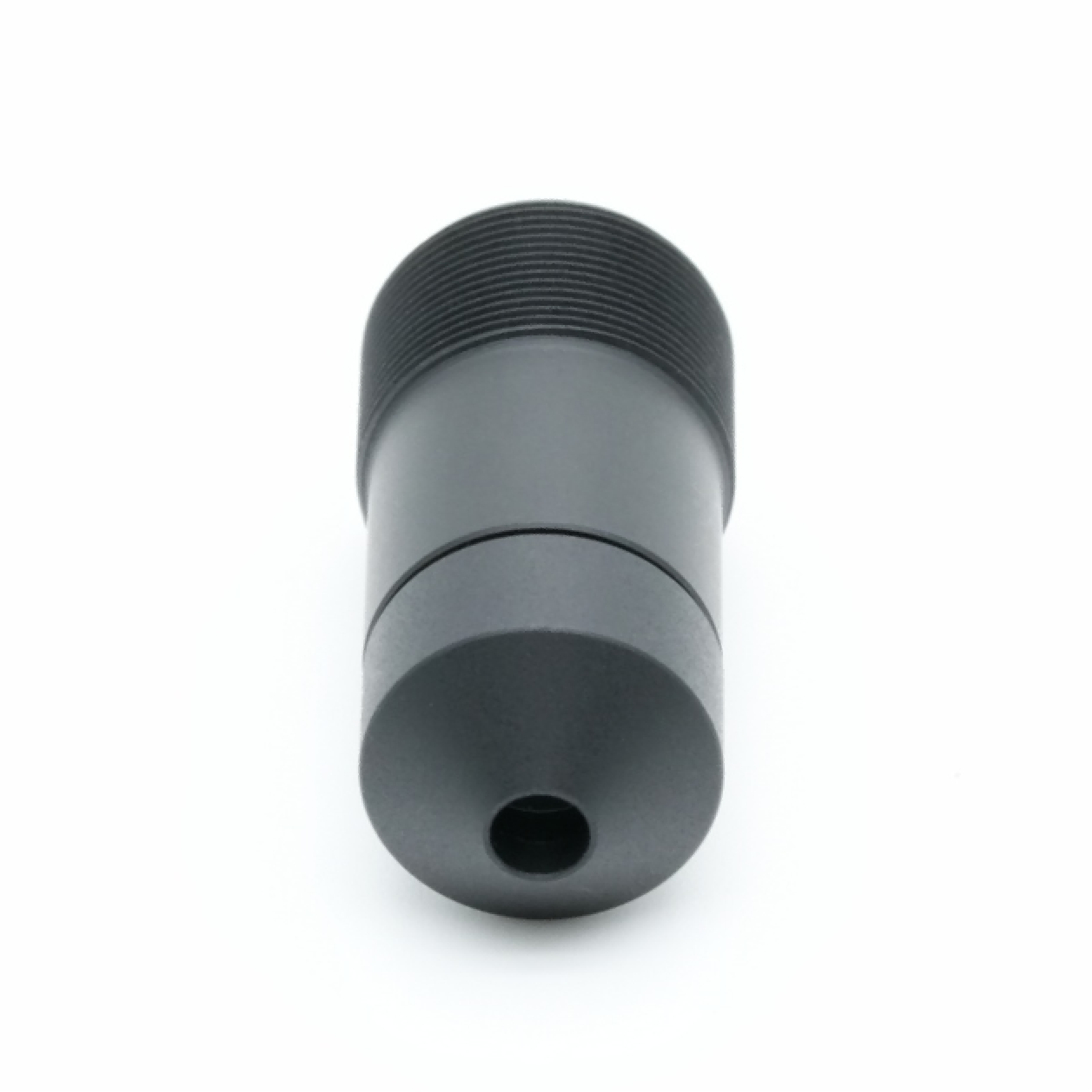

24mm Cone Lens

Brief Product Description

BOSHI Optical Technology introduces a premium 24mm fixed lens built for reliable high quality imaging across professional and industrial scenarios. This F4.5 aperture lens is optimized for full compatibility with 1/2.0 inch sensor devices, delivering uniform optical performance from the center to the edge of the imaging frame. Featuring a standard M12 mount and compact body structure, the lens integrates smoothly into various camera systems and compact device designs without extra adaptation work.

The lens boasts extremely low TV distortion and 97 percent high relative illumination, ensuring minimal geometric deformation and consistent brightness across the entire image circle. Its optical design prioritizes sharpness, color accuracy and edge clarity, making it a solid choice for applications that demand precise visual reproduction. With a robust mechanical structure and strict quality control, this 1/2.0 inch sensor lens maintains stable performance even during long term continuous operation.

Suitable for both indoor and outdoor deployment, this M12 mount lens offers a cost effective optical solution for system integrators, camera manufacturers and solution providers worldwide. BOSHI Optical Technology runs comprehensive optical testing on every unit before delivery to guarantee parameter accuracy and durable service life, and supports flexible order quantities to match different project scales.

Detailed Product Description

Detailed Parameter Analysis

1. As a 24mm fixed lens, this product features a nominal focal length of 24mm with a 5 percent tolerance, delivering stable magnification and a predictable field of view for consistent imaging output. Its F4.5 aperture balances light intake and depth of field effectively, reducing overexposure risk and keeping objects at different distances in clear focus.

2. This 1/2.0 inch sensor lens supports a maximum image circle of 8.4mm, which fully covers the active area of 1/2.0 inch sensors and avoids corner vignetting. The mechanical back focus is 3.5mm with a 0.2mm tolerance, ensuring precise flange distance alignment to guarantee sharp focus on the sensor surface.

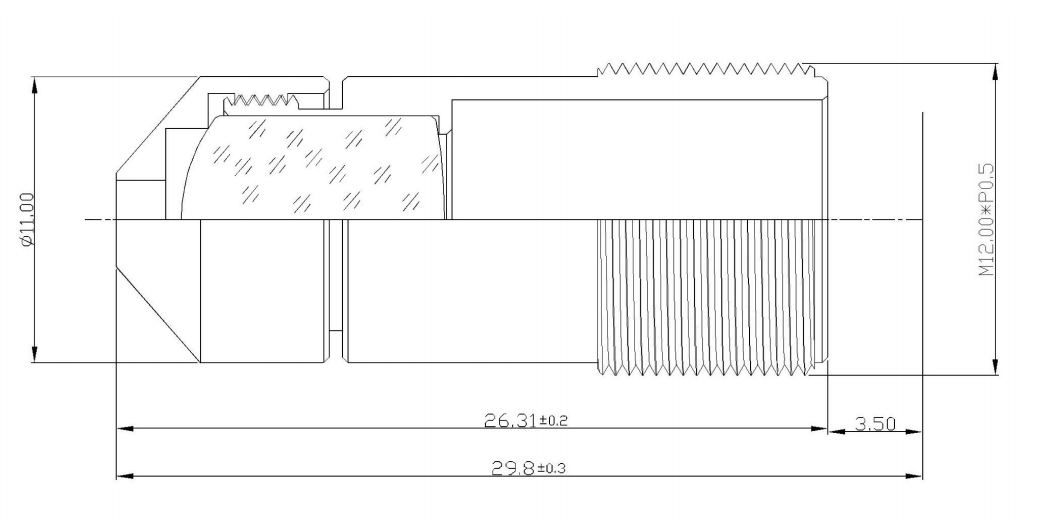

3. The lens adopts a universal M12 mount, a mainstream interface for compact camera systems, which enables direct installation on most M12 mount camera bodies and sensor modules. Its total length is 29.8mm, maintaining a compact form factor ideal for space limited device designs.

4. Core optical specifications include a 19.3 degree diagonal field of view, -0.05 percent TV distortion, 97.0 percent relative illumination, and a chief ray angle lower than 6.6 degrees. BOSHI Optical Technology conducts full parameter testing for each lens to ensure all values meet the published standards.

Performance Advantage

1. The ultra low distortion design of this F4.5 aperture lens effectively reduces geometric bending of straight lines in the image, which is essential for measurement tasks and scenarios that require accurate scene restoration. Its distortion level is significantly better than average lenses in the same focal length range.

2. With 97 percent high relative illumination, this 24mm fixed lens delivers highly uniform brightness distribution from image center to edge. This eliminates the common dark corner issue, improves overall image quality, and reduces the workload of software correction in post processing.

3. The chief ray angle of less than 6.6 degrees ensures excellent matching with 1/2.0 inch sensors, minimizing color shift and sharpness degradation at the image periphery. This feature makes the lens well suited for high resolution sensors that have strict requirements for incident light angle.

4. BOSHI Optical Technology applies precision optical manufacturing and assembly processes to ensure consistent performance across mass production. The compact M12 mount structure supports quick installation and replacement, which lowers maintenance costs for end users and system integrators.

Application Field

1. This machine vision lens is perfectly suited for industrial inspection systems, including product defect detection, size measurement, and assembly line monitoring. Its low distortion and high image uniformity support accurate image analysis and reliable measurement results.

2. As a high performance security camera lens, it performs well in fixed point surveillance scenarios such as perimeter monitoring, entrance and exit control, and indoor area observation. The 24mm focal length provides a moderate field of view for medium range monitoring with rich detail capture.

3. This industrial inspection lens also fits medical imaging devices, intelligent transportation systems, and handheld imaging equipment. Its compact size and stable optical performance support integration into various compact and portable devices.

4. This 1/2.0 inch sensor lens serves as a standard optical component for camera module manufacturers and system solution providers, supporting both small batch prototyping and large scale production deployment. BOSHI Optical Technology provides flexible supply schemes and professional technical support for different application demands.
