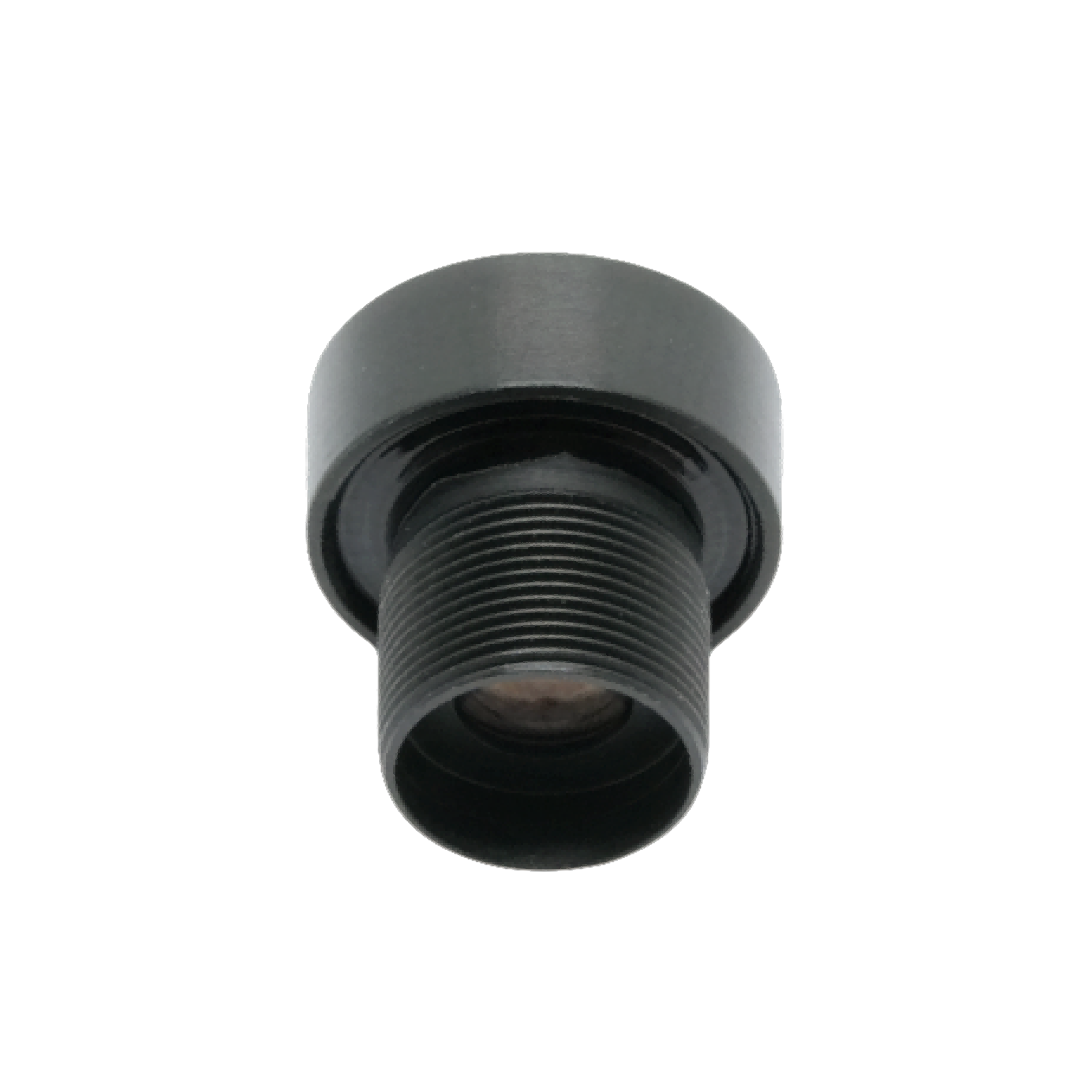

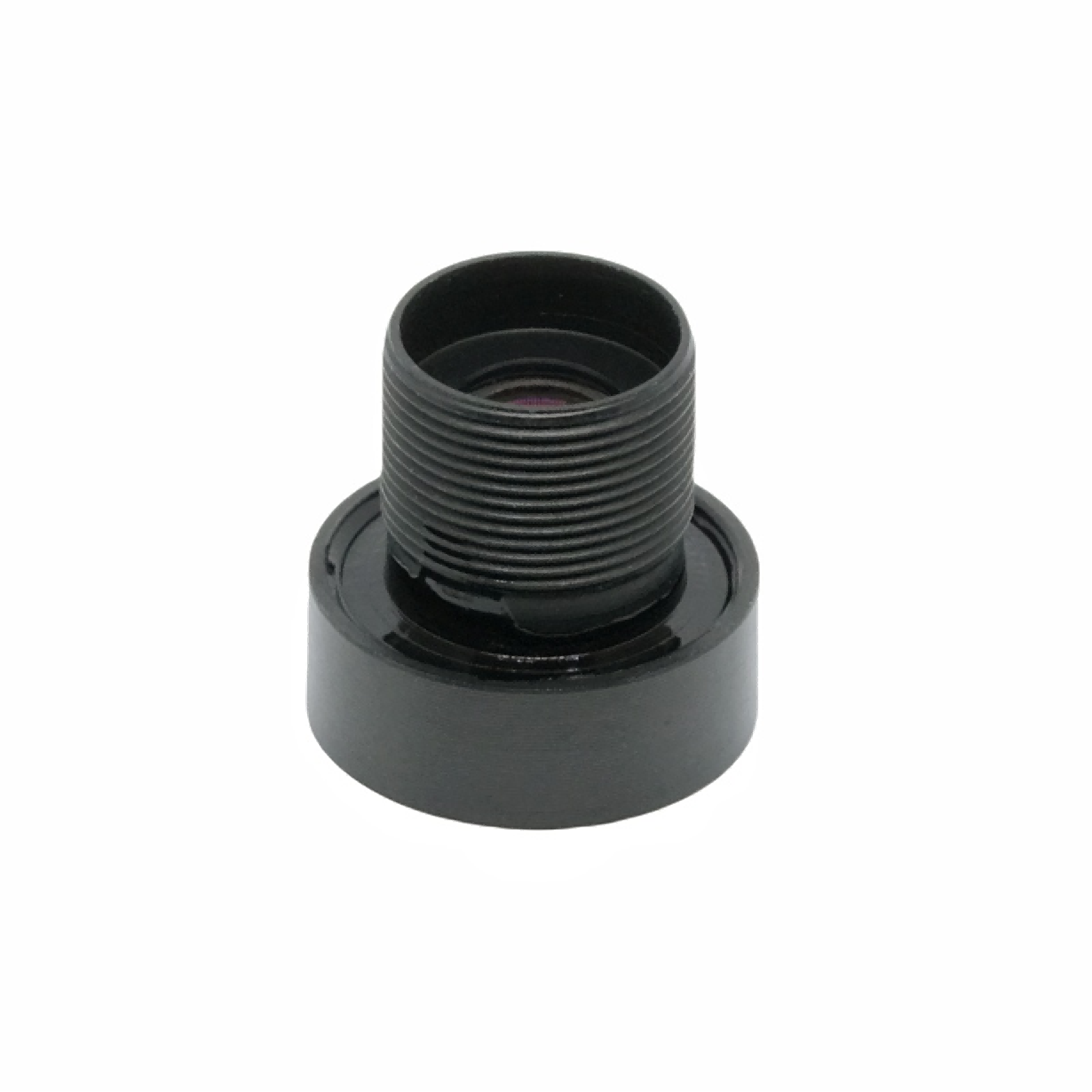

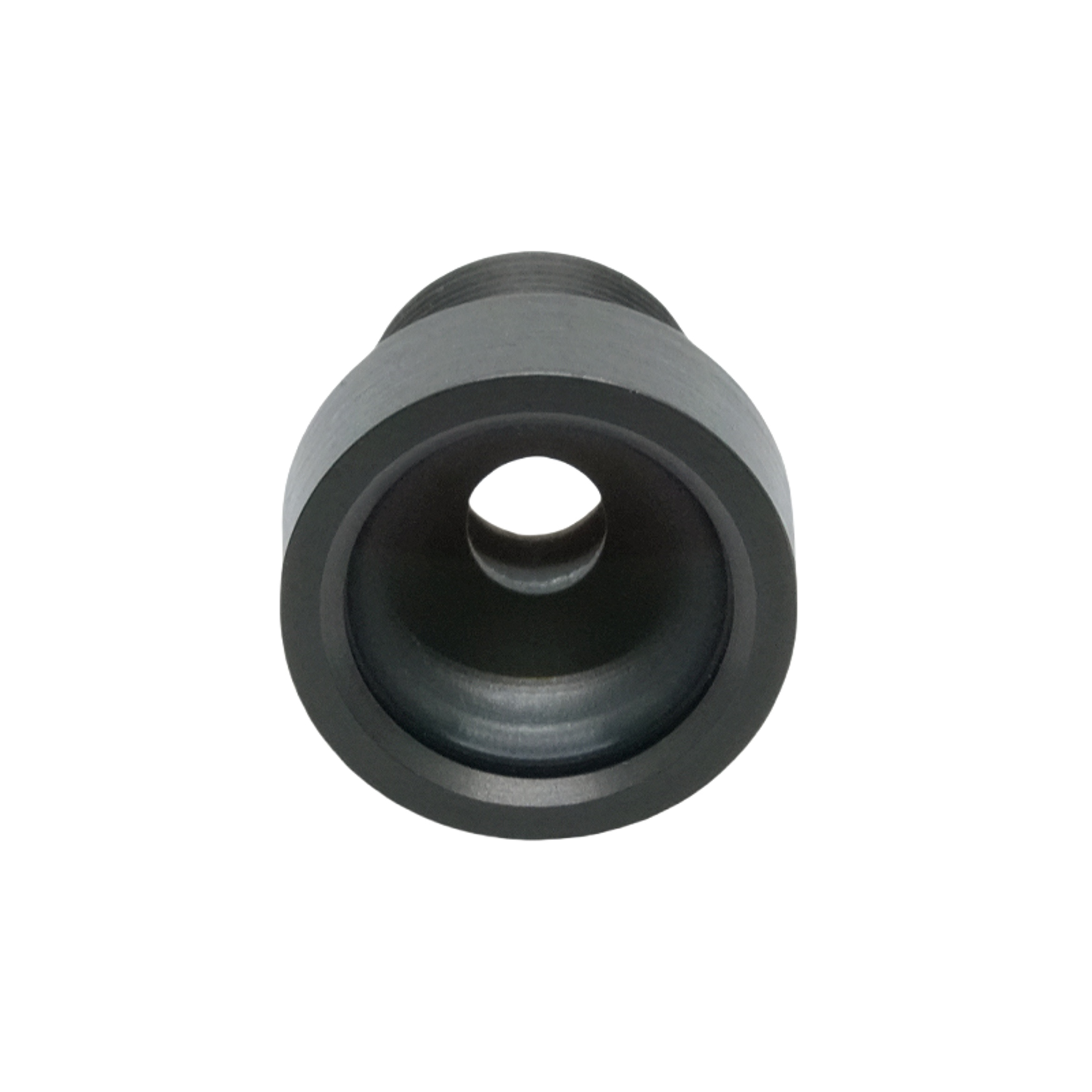

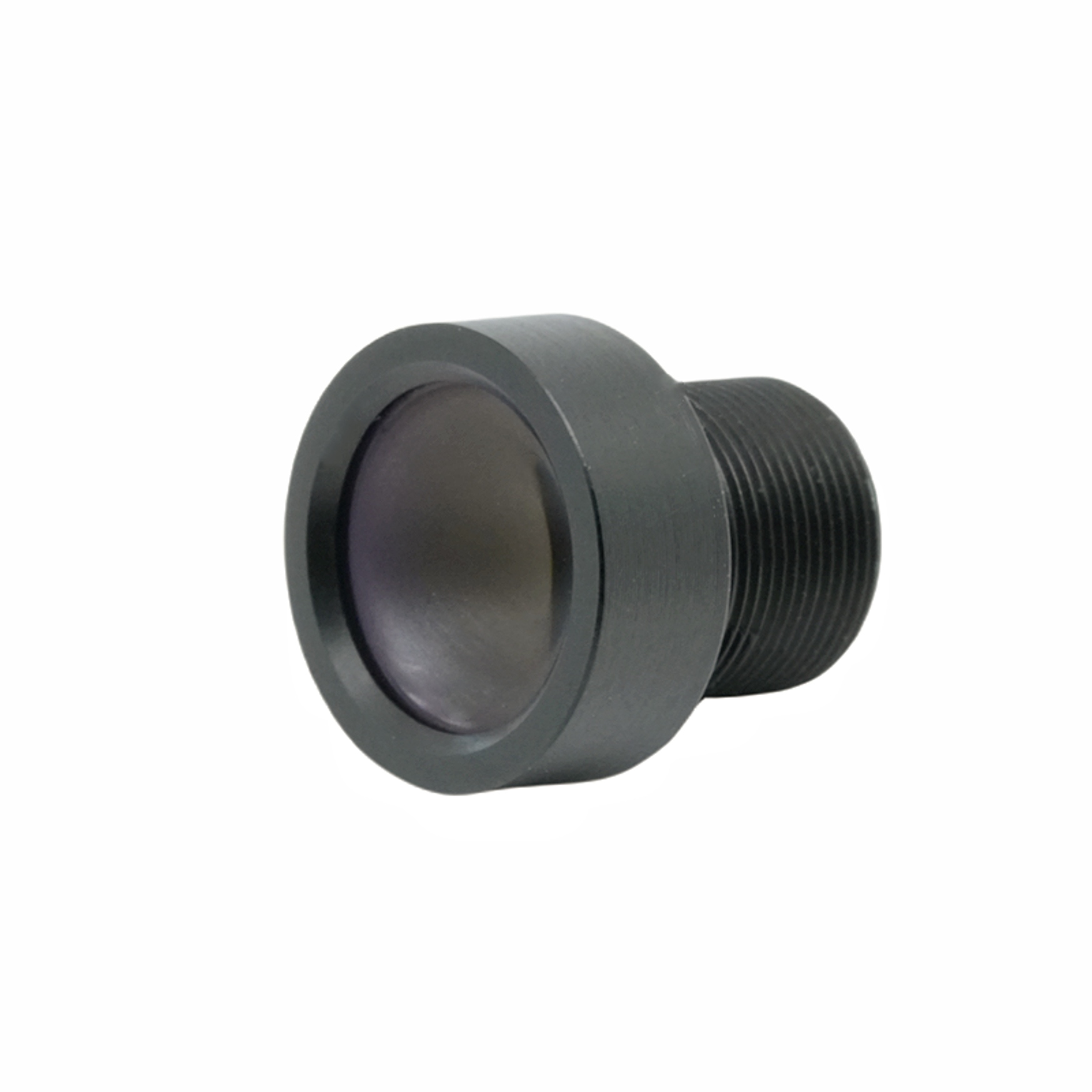

6mm F2.2 M7 Mount CCTV Lens for 1/2.9" Security Cameras

High-Performance 6mm M7 Mount CCTV Lens for Security Imaging

PL-0622C-M7 6mm F2.2 CCTV lens is engineered for high-performance security camera systems and industrial imaging applications. This M7 mount lens is optimized for 1/2.9" CMOS sensors, delivering stable optical output with excellent clarity and low distortion performance.

PL-0622C-M7 security camera lens features a 6.0mm focal length and F2.2 aperture design, allowing sufficient light transmission for clear imaging in various lighting conditions. The lens structure is built with 4G optical elements, ensuring consistent resolution and reduced optical aberrations across the entire field of view.

Low Distortion Optical Design for Accurate Imaging

PL-0622C-M7 lens adopts precision optical engineering to achieve only -2.0% TV distortion, ensuring accurate image reproduction in security monitoring systems. Compared to standard CCTV lenses, PL-0622C-M7 low distortion lens significantly improves edge clarity and reduces image warping, making it suitable for AI recognition and intelligent surveillance systems.

This 6mm CCTV lens is ideal for applications requiring stable geometric accuracy, such as face recognition cameras, smart city monitoring, and industrial inspection systems.

Optimized Field of View for Surveillance Applications

PL-0622C-M7 M7 mount lens provides a 55° diagonal field of view, 48° horizontal field of view, and 27° vertical field of view. This balanced FOV design ensures optimal coverage for mid-range surveillance environments while maintaining high image sharpness.

The 1/2.9" sensor compatibility allows PL-0622C-M7 security lens to be widely integrated into CCTV cameras, IP cameras, and embedded vision devices.

Reliable Optical Performance and Mechanical Stability

PL-0622C-M7 CCTV optical lens is built with a compact TTL of 14.6mm and precise mechanical back focal length of 4.6mm, ensuring easy integration into compact camera modules. The M7 mount structure provides stable mechanical alignment and consistent optical axis positioning.

With relative illumination of 65%, PL-0622C-M7 lens maintains uniform brightness across the image, reducing dark corners and improving overall image quality in low-light environments.

Applications of PL-0622C-M7 CCTV Lens

PL-0622C-M7 6mm F2.2 M7 mount lens is widely used in:

• Security surveillance cameras
• Smart home camera systems
• Industrial machine vision
• AI-powered monitoring systems
• Entry-level IP cameras
• Compact embedded imaging devices

This lens is especially suitable for systems requiring cost-effective optical performance with stable imaging quality and low distortion characteristics.

Why Choose PL-0622C-M7 M7 Mount Lens

PL-0622C-M7 offers a strong balance between optical performance and compact design. Compared with standard CCTV lenses, it provides improved edge sharpness, reduced distortion, and consistent image performance under different lighting conditions.

As part of Silk Optics’ precision lens series, PL-0622C-M7 ensures high manufacturing consistency and reliable performance for large-scale deployment in surveillance systems.
