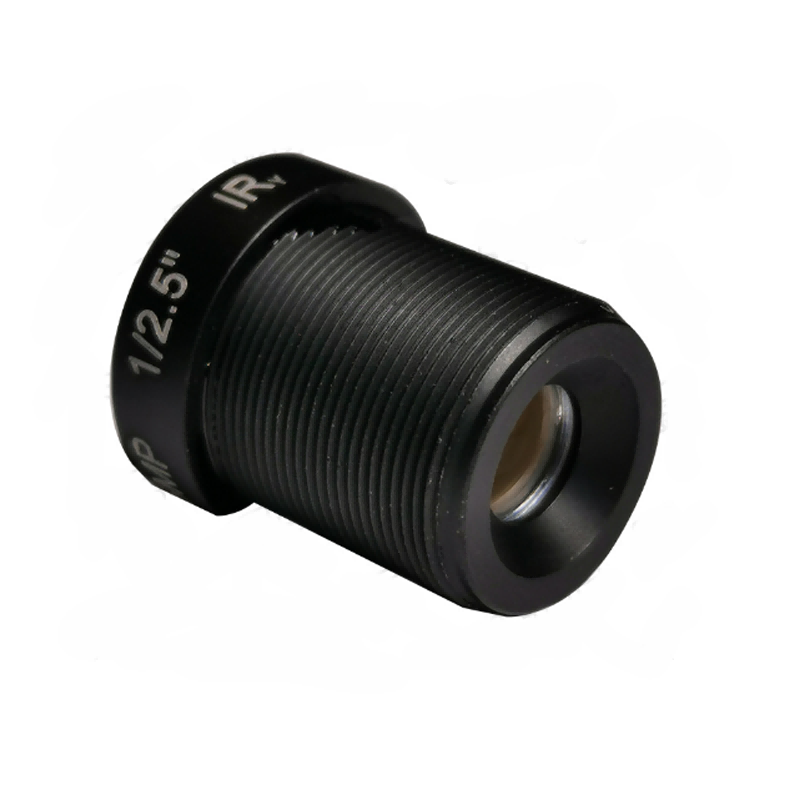

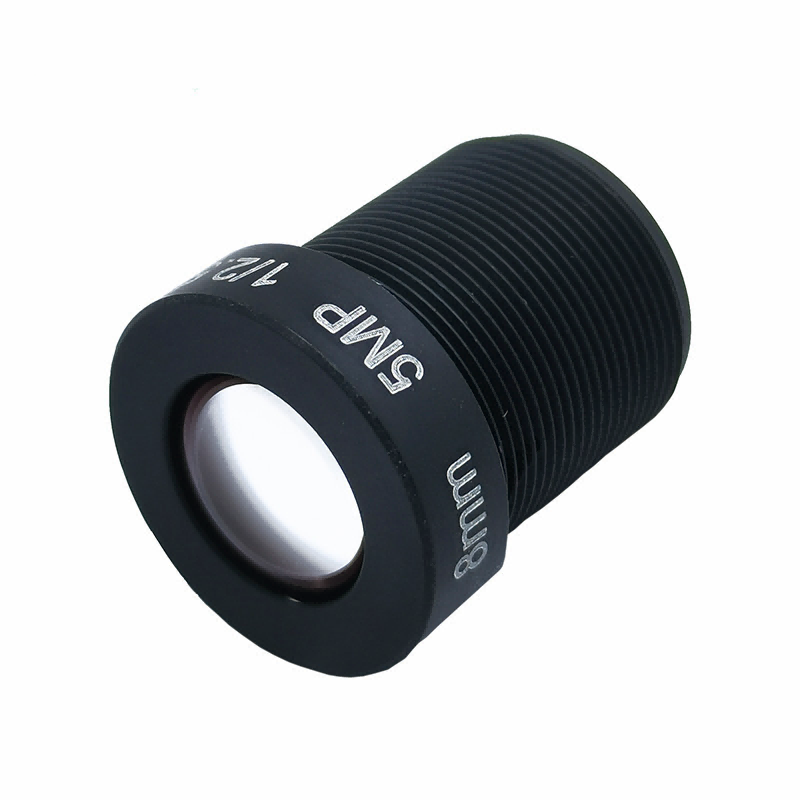

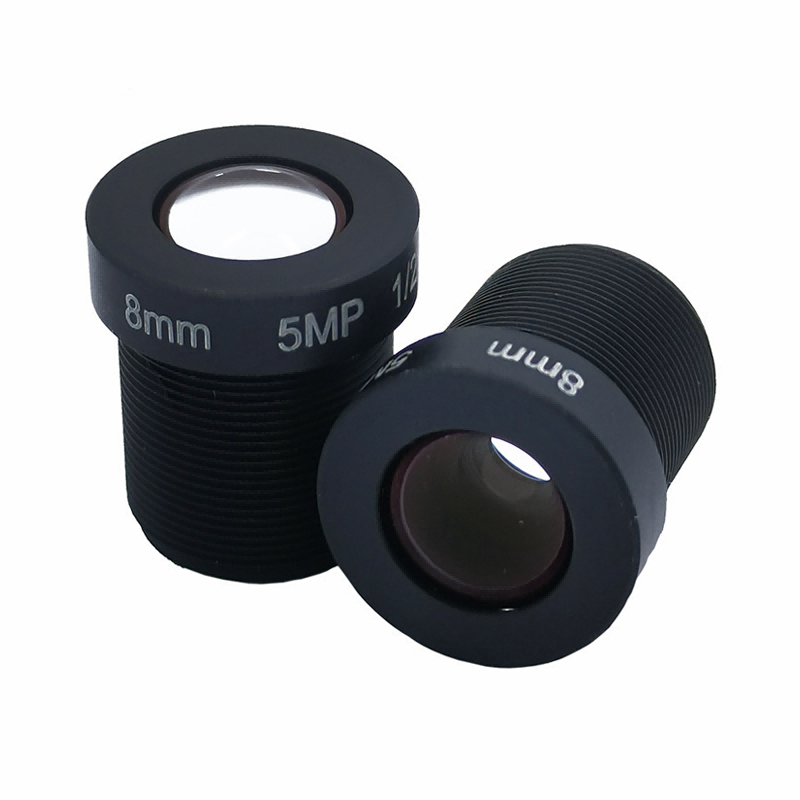

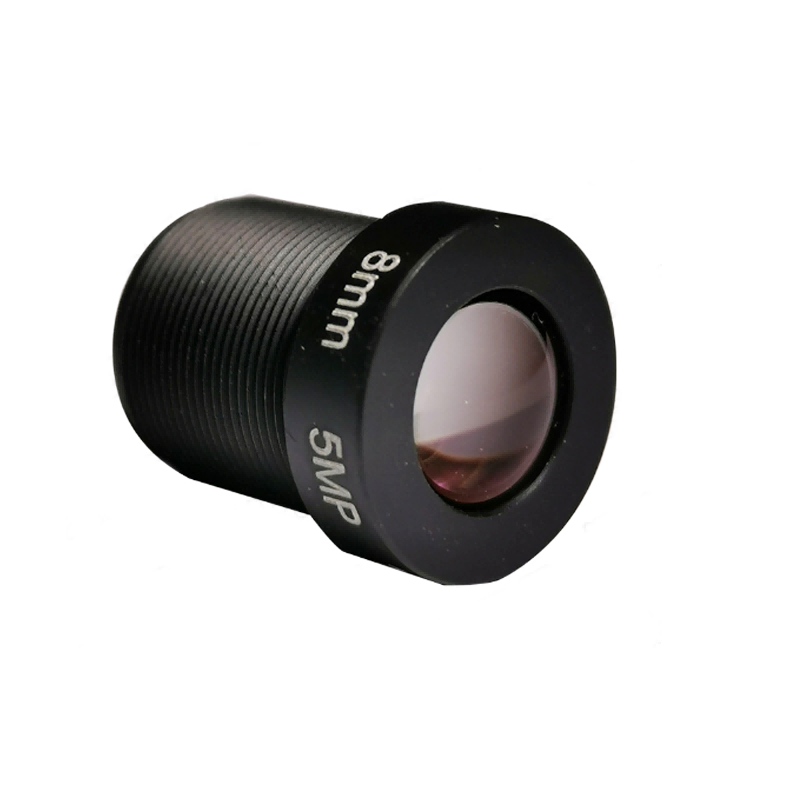

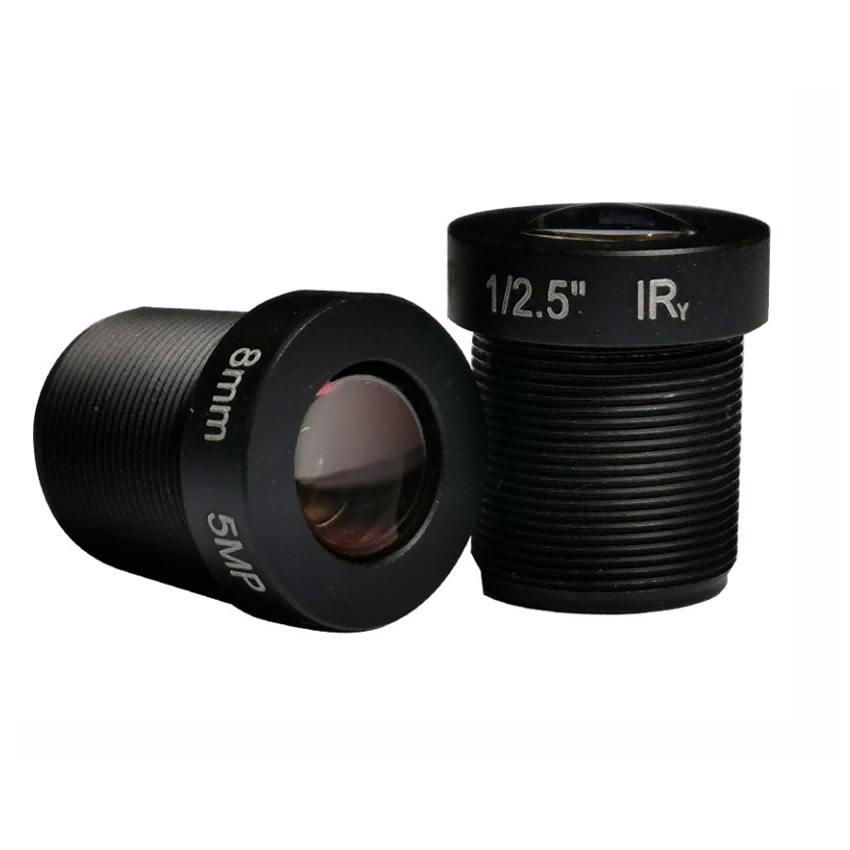

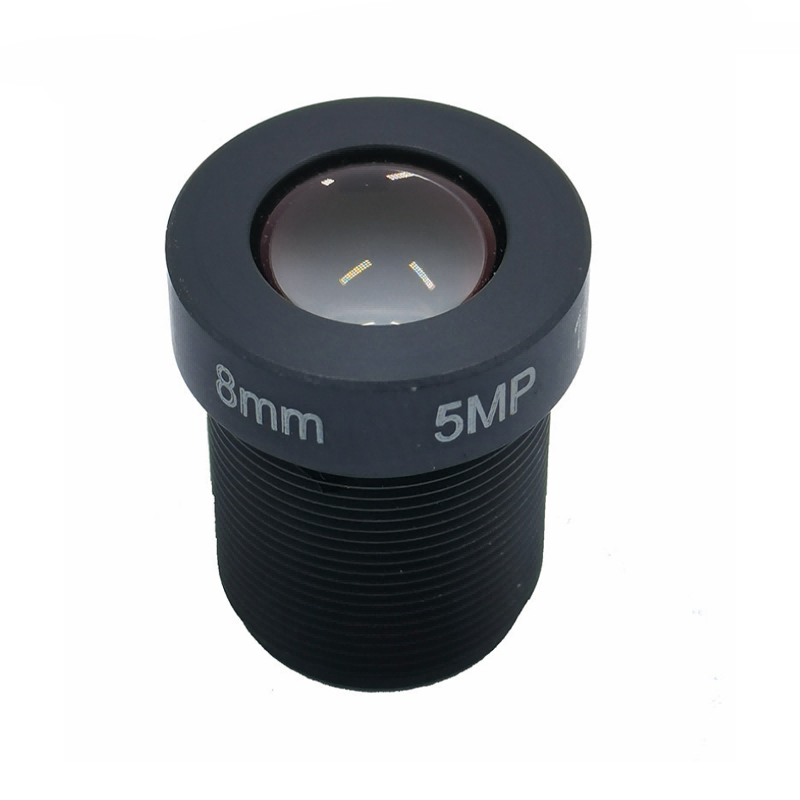

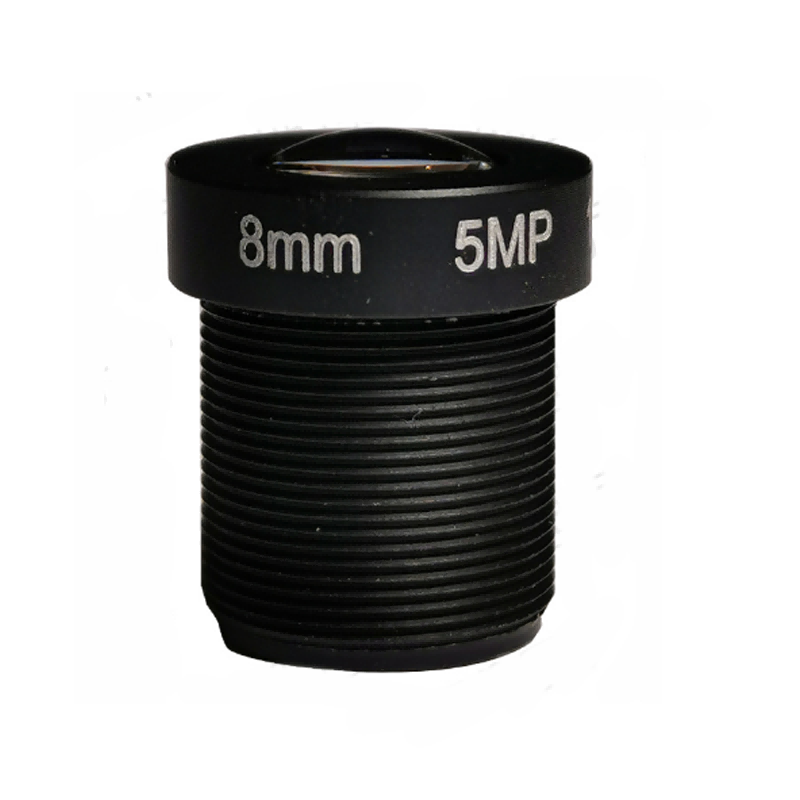

AIoT M12 5MP 8mm 1/2.7" F2.0 FPV Camera Lens

Product Description AIoT M12 5MP 8mm 1/2.7" F2.0 FPV Camera Lens
BOSHI LENS  is a leading China Standard M12 Lens manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Standard M12 Lens have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. We will provide you with the best after-sales service and timely delivery.

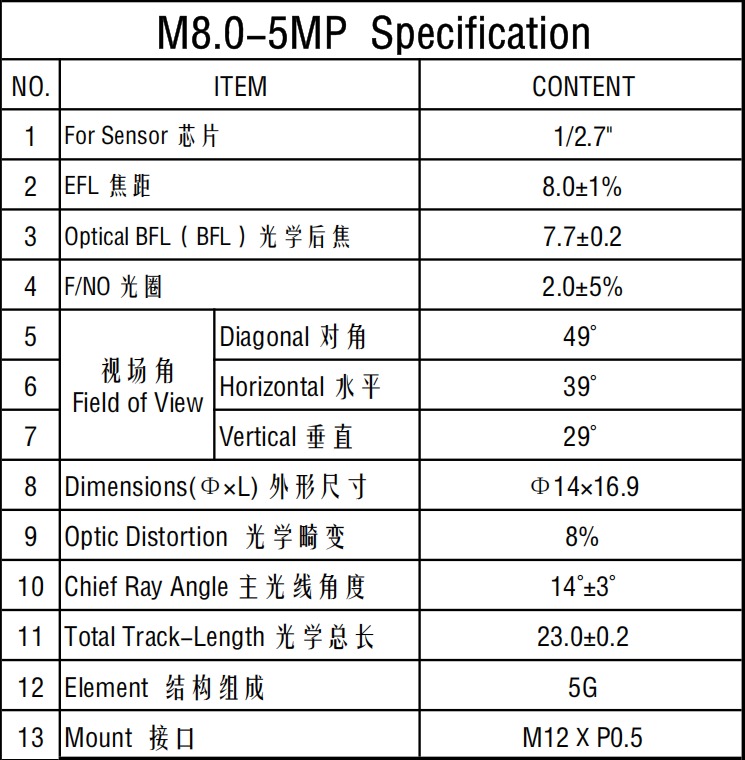

1. Product Performance Summary

AIoT M12 5MP 8mm 1/2.7" F2.0 FPV Camera Lens is a high-performance M12 mount (S-mount) fixed-focus lens with the following key technical parameters:

Resolution Support: 5 Megapixels (5MP), optimized for 1/2.7" sensors.

Optical Specifications:

Effective Focal Length (EFL): 8.0mm ±1% (medium-telephoto range).

Aperture (F/NO): 2.0 ±5% (large aperture for high light intake).

Field of View (FOV): 49° (Diagonal), 39° (Horizontal), 29° (Vertical).

Distortion Control: Optical distortion is rated at 8%.

Physical & Structural Design:

Lens Construction: 5G (5-Element All-Glass structure).

Total Track Length (TTL): 23.0mm ±0.2.

Mounting Interface: Standard M12 X P0.5.

Dimensions: Φ14 × 16.9mm (compact form factor).

2. Analysis of Performance Advantages

Superior Image Clarity: The 5MP resolution paired with an all-glass (5G) construction provides higher light transmission and sharper images compared to hybrid or plastic lenses. Glass elements significantly improve contrast and reduce chromatic aberration.

Enhanced Low-Light Performance: The F2.0 large aperture ensures ample light reaches the sensor. This allows the camera to maintain clear, low-noise imagery in dimly lit environments where smaller aperture lenses (like F2.4 or F2.8) would struggle.

High Thermal Stability: All-glass optics are highly resistant to thermal expansion. This ensures the lens remains in focus despite extreme temperature fluctuations (e.g., outdoor sun exposure or industrial heat), preventing the "defocusing" common in plastic-based lenses.

Targeted Detail Capture: The 8.0mm focal length provides a narrower, more concentrated field of view compared to wide-angle lenses (like 2.8mm). This makes it ideal for identifying objects at a distance with greater pixel density.

3. Recommended Application Fields

Given its 5MP resolution and medium-telephoto characteristics, this lens is ideally suited for:

Security & Surveillance:

Perfect for corridors, long hallways, or checkout counters where high-detail identification at a specific distance is required.

Ideal for outdoor bullet or dome cameras due to its durable glass construction.

Intelligent Traffic Systems (ITS):

Used in License Plate Recognition (LPR) at parking entrances or for monitoring traffic lanes where a focused field of view is necessary.

Industrial Machine Vision:

Suitable for automated assembly lines for surface defect inspection or high-speed barcode scanning where a specific working distance must be maintained.

Smart Home & IoT:

High-end video doorbells or indoor security cameras that require superior night vision performance and high-definition facial recognition.

Drones & FPV (First Person View):

For drone pilots or aerial imaging where a more "natural" perspective (less fish-eye distortion) and high-resolution detail are required.

Our Starlight Lens can be installed in Smart home webcam, artificial intelligence camera.

AIoT M12 5MP 8mm 1/2.7" F2.0 FPV Camera Lens Security Monitoring Starlight Lens, Standard M12 threaded interface Lens, with 2.0 F/NO, 6G structure, more lightweight, with high cost-effectiveness! If you are interested in our Standard Starlight Lens, you can consult us now, we will reply to you in time!

The product has the following specific characteristics：

1. Product features: Made of all plastic material, while ensuring the quality of the products, we can offer customers a lower purchase price..

2. Product advantages: Large angle, small size, Wide depth of field range.

We are eagerly awaiting your purchase and look forward to providing you with the best cooperation experience and deeper business collaboration.
