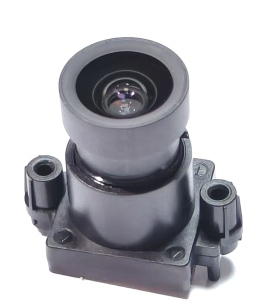

Full Color F1.0 blacklight Starlight M12 lens 4mm

Product Description BOSHI LENS  is a leading China Standard M12 Lens manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Standard M12 Lens have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. We will provide you with the best after-sales service and timely delivery.

PL069 Security Monitoring Lens, Standard M12 threaded interface Lens, with 2.0 F/NO, 1G3P structure, more lightweight, with high cost-effectiveness! If you are interested in our Standard Starlight Lens, you can consult us now, we will reply to you in time!

Our F1.0 black light 4mm lens PL100 can still clearly capture the details of objects even in low-light conditions. At the same time, it demonstrates significant advantages in stray light suppression, edge image clarity and light transmittance, and has a higher yield rate and better product consistency.

The Aperture of F1.0 is nearly the physical limit for traditional optical lenses, with the key challenges lying in:

1) Design Challenges:

 - Extremely shallow depth of field (DOF): The DOF of an F1.0 lens is approximately 0.25 times that of a traditional F2.0 lens. In terms of optical design, there are several challenges involved:

 - Ultra-high manufacturing precision for components.

 - Submicron-level assembly accuracy.

 - Eliminate image blur caused by Contraction of Plastic/Metal/CMOS materials.

 - Profound optical design expertise.

 - Suppress stray light.

 - Advanced simulation tools and experience feedback for continuous iterative design optimization.

2) Component Manufacturing Precision:

 - Component tolerances for F1.0 lenses are ~5x stricter than F2.0 lenses.

The key components need to meet several important requirements:

 - The dimensional accuracy is less than 0.6 micrometers.

 - The consistency between the main cavity and the secondary cavity in injection molding must be very high.

 - It requires end-to-end capabilities for ultra-precise manufacturing and measurement.

3) Cost Control:

 - Achieving cost-effectiveness required:

 - High assembly rate and consistency.

 - Automation-driven production scalability.

*Note:*

Only a few lens manufacturing companies worldwide have similar products. Benchmark tests show our product excels in:

 - Excellent suppression of stray light.

 - Outstanding edge sharpness and transmittance.

 - The first-pass yield that far exceeds of the competitors.

The product has the following specific characteristics：

1. Product features: Made of all plastic material, while ensuring the quality of the products, we can offer customers a lower purchase price..

2. Product advantages: Large angle, small size, Wide depth of field range.

We are eagerly awaiting your purchase and look forward to providing you with the best cooperation experience and deeper business collaboration.
