A Must-Read for Procurement: 5 Hidden Traps in Optical Lens Spec Sheets

The Reality of Sourcing Optical Components

Let’s be honest: comparing optical lens spec sheets can feel like reading a foreign language. Most procurement managers and overseas buyers naturally focus on the big three: Resolution (Megapixels), Focal Length, and Price. You find a supplier offering a "5MP 4mm F2.0 lens" for twenty cents cheaper than your current vendor. You place a massive trial order. A month later, your lead engineer walks into your office holding a camera module and says, "The corners are completely blurry, and the lens hits the sensor glass."

What went wrong? You fell into the hidden traps of optical parameters.

To source lenses like a true optical insider, you need to look past the headline numbers. Here are the 5 critical, often-ignored specifications that separate a successful production run from a costly RMA nightmare.

1. CRA (Chief Ray Angle): The Silent Megapixel Killer

You bought a 5MP lens and a 5MP sensor, but your image looks like a 2MP camera. Why? Because the CRA didn't match.

The Chief Ray Angle is the angle at which light rays hit the very edges of the image sensor. Modern high-resolution sensors have tiny, deep pixels. If the lens bends the light at an angle that is too steep (e.g., a CRA of 25° on a sensor that requires 15°), the light spills into the wrong pixel wells.

• The Result: Severe color fringing (purple halos) and completely blurred edges.

• The Sourcing Fix: Always ask your engineers for the sensor's maximum CRA allowance, and strictly match it to the lens spec sheet.

2. "Optical" vs. "TV" Distortion: The Marketing Trick

If you are buying lenses for machine vision, AGV robots, or facial recognition, distortion is your enemy. But suppliers love to play games with this number.

You might see a spec sheet claiming "Distortion: < 2%". Sounds great, right? But you need to ask: Is that Optical Distortion or TV Distortion?

• Optical Distortion: A mathematical value that always looks lower on paper.

• TV Distortion: How the distortion actually appears on a monitor or to an AI algorithm. It is usually a much higher number.

• The Sourcing Fix: If your AI software needs straight lines, strictly demand the TV Distortion value. Don't be fooled by the artificially low "Optical" number.

3. Lens Structure (e.g., 1G3P): The "Summer Blur" Problem

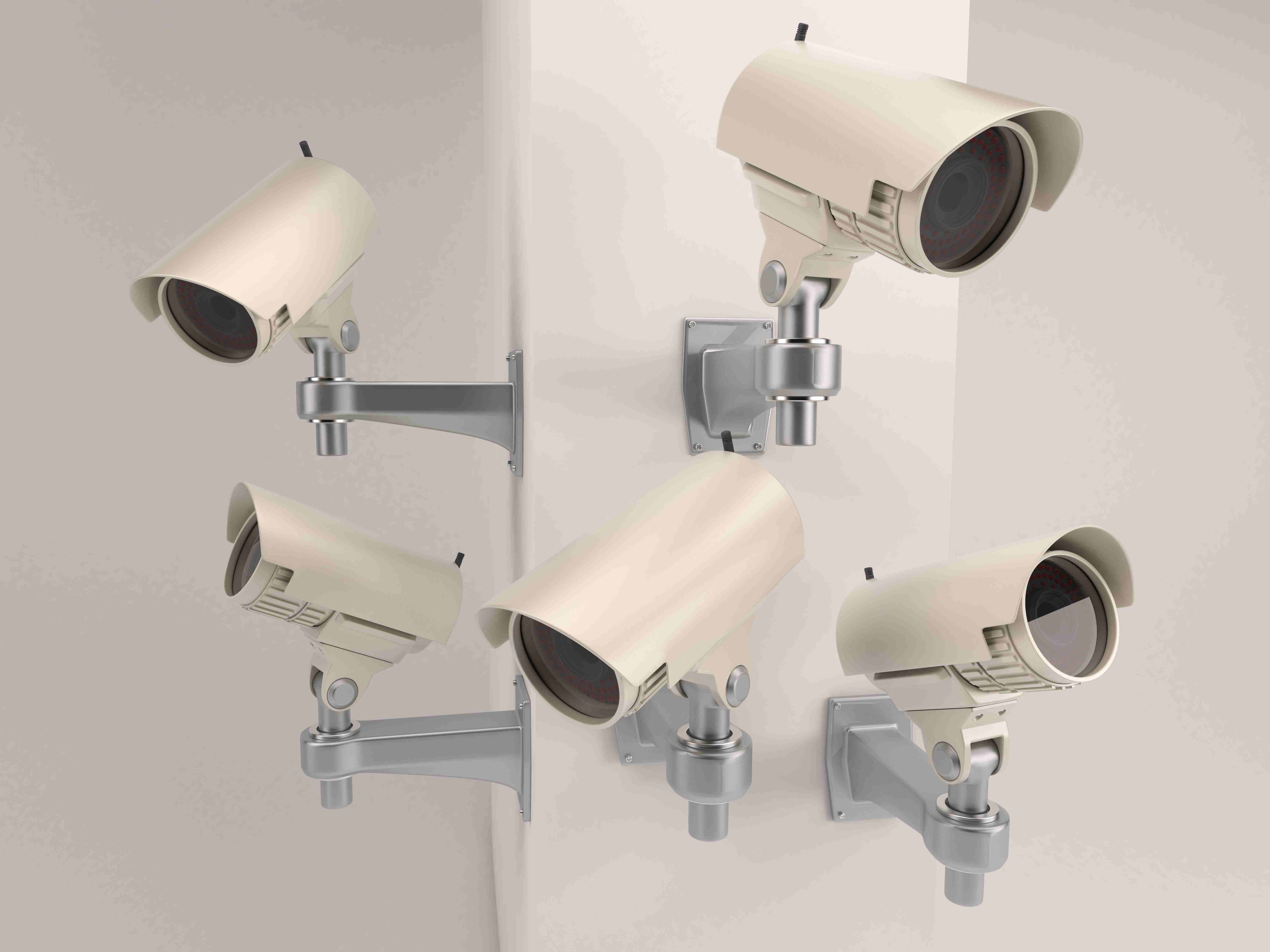

You test a cheap all-plastic (4P) lens in an air-conditioned lab, and it looks fantastic. You deploy 10,000 security cameras in Texas or Dubai. When summer hits, the plastic expands, the focal point shifts, and every single camera goes blurry.

• The Sourcing Fix: Look at the structural makeup on the spec sheet. For environments with temperature swings, you need glass. A 1G3P (1 Glass, 3 Plastic) or 2G2P hybrid structure uses precision glass elements to stabilize the optics against heat. Paying slightly more for a hybrid structure saves you massive replacement costs later.

4. TTL (Total Track Length) & BFL: The Mechanical "Crunch"

Optical performance means nothing if the lens doesn't physically fit inside your camera housing.

• TTL (Total Track Length): The distance from the very top of the lens to the image sensor. If your camera housing is super compact, a lens with a long TTL simply won't fit behind the dome glass.

• BFL (Back Focal Length): The distance from the bottom of the lens barrel to the focal point. If the BFL is too short, screwing the M12 lens into the mount will cause it to physically crash into (and break) your expensive IR-CUT filter.

5. F-Number vs. Actual Transmission (Coatings)

An F1.6 aperture from a cheap factory and an F1.6 aperture from a premium manufacturer will not let in the same amount of light.

Why? Because bare glass reflects light away. High-end lens manufacturers use multi-layer broadband anti-reflective coatings (AR Coatings) on every single piece of glass to ensure 98%+ light transmission. Cheap manufacturers skip the coatings to save money, resulting in a dark, noisy image despite having the correct "F-Number."

• The Sourcing Fix: Ask the supplier about their coating processes. If the lens is incredibly cheap, they likely compromised on the AR coatings.

The Bottom Line for Sourcing

Stop buying lenses based purely on Megapixels and Price. The next time a supplier hands you a quotation, verify their CRA, confirm the TV distortion, check the TTL against your mechanical drawings, and ask about the glass-to-plastic ratio.
