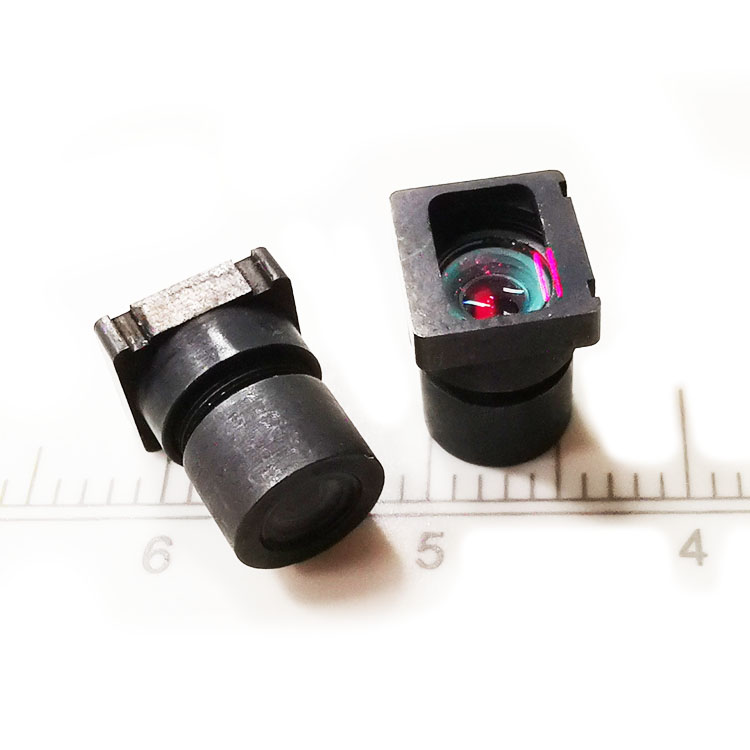

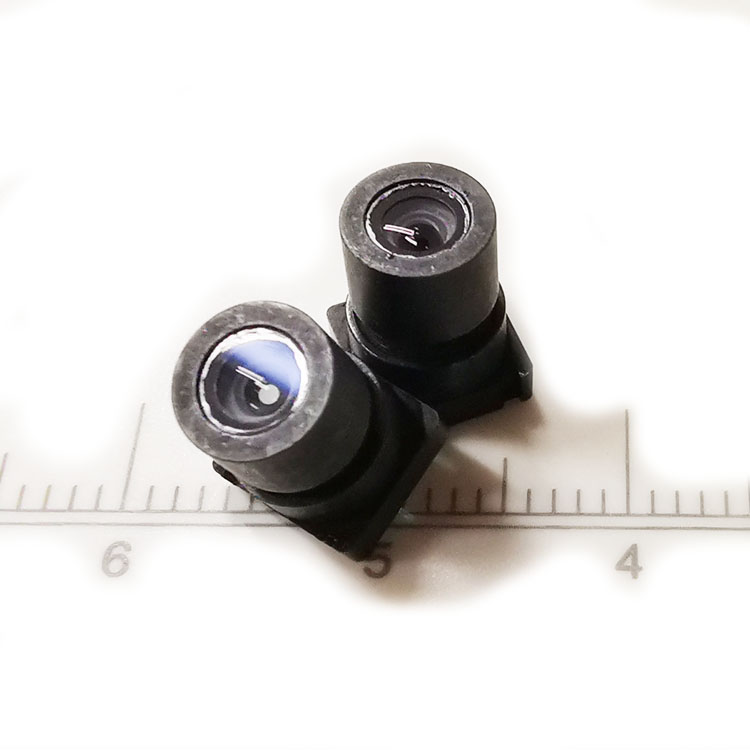

New product 4K Ultra HD 1/3.06 "endoscope M5.5 lens

New product 4K Ultra HD 1/3.06 "endoscope lens ，large depth of field 10-120mm. Can be applied to 3D microscopes

Model:PM064

Send Inquiry

Product Description

Endoscope Lenses/ Lens UnitsObjective lens units for 1/6, 1/9,1/11, 1/15 and 1/18 etc CMOS image sensors，Can be applied to 3D microscopes

shanghai silk optical provides small-sized medical endoscope lenses with a large field of depth, low distortion, reliable durability, and water-resistant. These tiny plastic lenses are widely used in disposable endoscopy applications.

Customization is available for this product.

New product 4K Ultra HD 1/3.06 "endoscope lens！！！

We have more products, please feel free to leave a message for consultation：

The models PM904 and PM908 endoscope lenses are both designed and produced by ourselves, suitable for sensors of 1/9 ", such as OV9734 and ES101,

Our company's product capacity is as high as 30000 pcs month.

We can also produce products according to your needs and provide some expert advice on design and how to coordinate with other components of your endoscope equipment.

1 Matching Sensor： IMX258 1/3.06"

2 Max. IC： Ø 1.2

3 EFL： 1.12±5%

4 Mechanical TTL： 10.1±0.15

5 Mechanical BFL： 2.5±0.15

6 F#： 5.6±5%

7 DOF ：10-120

8 FOV(D) ：73±10%

9 TV distortion ：-2.4%

11 Thread： M5.5

12 Barrel&Holder：CU

13 IR Cut Filter： 650±10nm@T=50%

14 Cover Glass Sapphire: waterproof

Technical Detail

Our Factory

Packaging & Shipping

Terms and conditions

1. Price terms: FOB Shanghai or CFR/CIF your destination port
2. Payment terms: T/T or L/C issued by irrevocable L/C issued by first class international bank
3. Packing: by carton box
4. Inspection: by the third party or on site inspection is welcome

FAQ

• Are you the factory?
Yes, We are a professional manufacturer for kinds of lens for about 20 years, factory located in Jiangxi province and Shanghai city.
• How about the quality warranty?
We have a strict quality management systems by ISO9001:2000, all products are producing, testing, packing under related standard.
• Could you do customized logo and packaging?
Yes, OEM and ODM is acceptable
