The Boom of Vision Robots (AGV/AMR): Why Standard Lenses Are Failing and What "Custom Optics" Truly Means Article Introduction

1. The Earthquake Problem: Anti-Vibration and Structural Integrity

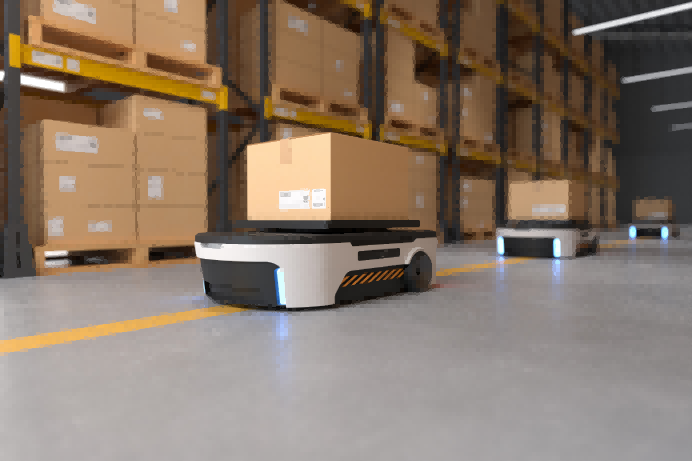

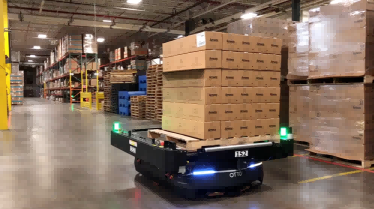

A security camera sits quietly on a ceiling for five years. An AMR, on the other hand, lives a life of constant trauma. It drives over concrete expansion joints, abruptly stops, rotates 360 degrees, and carries vibrating payloads.

If you put a standard consumer M12 lens on a robot, the micro-vibrations will literally unscrew the lens over time, or shift the internal elements. Suddenly, your robot is near-sighted.

The Custom Requirement: Robotics lenses demand highly customized mechanical structures. This isn't just about optical glass; it is about hardware. Manufacturers must employ specialized thread-locking designs, aviation-grade aluminum barrels instead of cheap plastics, and precision glue-dispensing techniques during assembly to permanently lock the focal plane in place. The lens must survive thousands of hours of high-frequency vibration without a single micrometer of focal drift.

2. The Geometry Problem: Ultra-Low TV Distortion

When a human looks through a fish-eye lens, our brain knows that the curved doorframe is actually straight. A machine vision algorithm does not have that luxury.

If a robot uses a lens with typical barrel distortion (where the edges of the image bow outward), its V-SLAM algorithm calculates that the straight warehouse aisle is actually curved. The robot will continuously try to correct its path, leading to inefficient zigzagging or, worse, collisions.

The Custom Requirement: While a security camera can tolerate -15% or -20% TV distortion, AGV and AMR lenses often require ultra-low distortion—sometimes pushing towards < 1% for high-precision mapping. Achieving this requires complex, multi-element optical designs (often utilizing precisely molded aspherical glass elements) to flatten the image optically before the software even has to touch it.

3. The "Blind Spot" Dilemma: FOV vs. Edge Resolution

An AMR needs to see the QR code on the floor directly in front of it, while simultaneously watching for a human walking into its path from the left. This requires a very specific, often ultra-wide Field of View (FOV).

However, in standard wide-angle lenses, the center of the image is sharp, but the edges become a blurry, smeared mess (due to high Chief Ray Angle and optical aberrations). If an obstacle is in that blurry edge, the robot's AI might mistake a human leg for a shadow.

The Custom Requirement: Edge-to-edge optical consistency is mandatory. Custom robotics lenses are engineered to ensure that the MTF (Modulation Transfer Function—a measure of sharpness) remains incredibly high even at the extreme corners of the image circle. Every pixel matters when safety algorithms are calculating distance and depth.

4. Payload and Power Limits: The Weight Factor

Battery life is the lifeblood of an AMR. The heavier the robot, the faster the battery drains. Furthermore, the motors controlling the robot's gimbal or stereo-camera array are highly sensitive to weight. A massive, heavy, all-glass industrial lens can disrupt the center of gravity and strain the motors.

The Custom Requirement: This is where advanced hybrid structures shine. Optical engineers are increasingly asked to customize 1G3P (1 Glass, 3 Plastic) or 2G2P hybrid lenses. By strategically combining temperature-stable glass elements with ultra-lightweight, high-precision plastic polymers, manufacturers can deliver the strict optical clarity required for machine vision while shedding crucial grams off the robot's payload.

The Bottom Line: Moving Beyond "Off-The-Shelf"

The era of slapping a generic CCTV lens onto a high-tech robot is over. For an AGV or AMR to truly map its environment, avoid dynamic obstacles, and operate safely 24/7, its "eyes" must be purpose-built for the job.

At Shanghai Silk Optical Technology Co., Ltd., we understand that the robotics industry does not run on standard parts. From calculating the exact CRA to match your stereo-vision sensors, to designing vibration-proof housings and low-distortion glass profiles, we provide the OEM/ODM optical engineering that your machine vision algorithms desperately need.

(Building the next generation of smart AMRs? Don't let a generic lens bottleneck your software. Contact our engineering team today to discuss your non-standard customized optical requirements.)
