Stop Chasing the Largest Aperture: Why This F2.0 Lens is Actually the Smarter Choice for 90% of Security Scenarios

The Physics Trade-Off: Light vs. Depth of Field (DoF)

In optics, you never get something for nothing. When you open up an aperture to F1.0 to swallow as much light as possible, you sacrifice something equally important for security: Depth of Field (DoF).

Depth of field is the distance between the nearest and farthest objects in a scene that appear acceptably sharp in an image.

• Large Aperture (F1.0): Creates a very shallow depth of field. If your camera focuses on a person 3 meters away, the car parked 10 meters behind them might be a blurry mess. (Great for cinematic portraits, terrible for wide-area security).

• Standard Aperture (F2.0): Provides a much deeper depth of field. Both the person at 3 meters and the car at 10 meters will remain in sharp, readable focus.

In a standard security environment, you don't want a "cinematic blur" background. You want maximum situational awareness. An F2.0 lens naturally keeps more of your environment crisp and identifiable.

The Reality of Deployment: You Probably Already Have Light

F1.0 lenses are engineered for extreme low-light, near-pitch-black environments. But let's look at where 90% of security cameras are actually installed:

• Office buildings with emergency exit lighting.

• Retail stores and shopping malls.

• Street corners with municipal streetlamps.

• Warehouses with motion-activated floods.

If your environment has ambient light, an F2.0 lens paired with a modern 1/2.7" CMOS sensor is more than capable of delivering brilliant, high-definition, noise-free images. Paying a premium for an F1.0 glass structure when you already have environmental light is simply throwing away your budget.

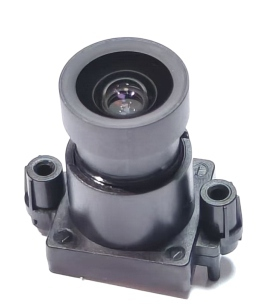

Enter the PL057: The Ultimate F2.0 Workhorse

At Shanghai Silk Optical Technology Co., Ltd., we know that smart engineering is about matching the exact right tool to the job. We designed the PL057 Lens specifically to be the ultimate, cost-effective workhorse for that 90% of scenarios.

Just because it is an F2.0 doesn't mean it lacks premium engineering. Here is why the PL057 punches way above its weight class:

• The Genius 1G3P Structure: Pure glass lenses are expensive; pure plastic lenses suffer from thermal drift and lower clarity. The PL057 uses a masterfully balanced 1G3P (1 Glass, 3 Plastic) hybrid structure. The single glass element stabilizes the optical path against temperature changes, while the precision-molded plastic elements keep the unit lightweight and incredibly cost-effective to manufacture at scale.

• True 5MP Resolution: Don't let the compact size fool you. With a Chief Ray Angle (CRA) of < 15°, this lens is perfectly tuned to prevent pixel crosstalk on high-density 1/2.7" sensors, delivering flawless 1.3MP to 5MP resolution.

• Perfect Geometry: Offering a wide 83° Horizontal Field of View (FOV) combined with a controlled -18% TV distortion, it captures a massive area without making the edges of the room look like a funhouse mirror.

• Standardized Fit: With a classic 4.0mm focal length, a compact TTL of 22.7mm, and standard M12 threading (Ø14*M12), it drops seamlessly into almost any standard camera housing or robotics chassis.

The Bottom Line for Procurement

Don't let marketing hype inflate your manufacturing costs. If you are building cameras for pitch-black, rural environments, absolutely invest in our F1.0 series. But if you are deploying smart home cameras, retail surveillance, robotics vision, or standard enterprise security systems, the F2.0 aperture is your best friend.

By choosing a highly engineered F2.0 lens like the PL057, you maximize your depth of field, ensure edge-to-edge 5MP clarity, and drastically optimize your production budget.

(Stop over-specifying and start optimizing. Click here to view the full mechanical drawings of the PL057 and request a quote for your next production run.)
