Introduction: The Lens Specification Sheet Is Not Just a Table of Numbers

When engineers select a camera lens, the first step is usually simple:

Open the specification sheet.

Then comes the difficult part.

A typical lens datasheet may include:

• EFL
• F-number
• FOV
• MTF
• Distortion
• CRA
• TTL
• Sensor format
• Relative illumination

For experienced optical engineers, these numbers tell a story.

For beginners, they can look like a foreign language.

The challenge is not finding a lens with the “best” specifications.

The challenge is understanding:

Which optical parameters actually matter for your application?

A surveillance camera, autonomous robot, drone, medical device, and industrial vision system all use lenses—but they require completely different optical characteristics.

This guide explains the essential camera lens specifications engineers need to understand before making a selection.

---

1. Focal Length (EFL): The Foundation of Lens Perspective

What Is Focal Length?

Effective focal length (EFL) is one of the most important specifications of a camera lens.

It determines:

• Magnification
• Viewing angle
• Perspective relationship between objects

Simply:

Short focal length = wider view
Long focal length = narrower view

---

Common Examples

Wide-Angle Lens

Typical focal lengths:

• 1.8mm
• 2.8mm
• 3.6mm

Applications:

• Security cameras
• Smart home devices
• Robotics
• Parking monitoring

Advantages:

• Large coverage area
• Better environmental awareness

Limitations:

• Higher distortion
• Reduced object size at distance

---

Telephoto Lens

Typical focal lengths:

• 12mm
• 25mm
• 50mm+

Applications:

• Traffic monitoring
• Long-distance inspection
• Industrial measurement

Advantages:

• Captures distant details

Limitations:

• Narrow field of view

---

2. Field of View (FOV): How Much Can the Camera See?

Field of View describes the visible area captured by a lens.

It is usually expressed as:

• Horizontal FOV
• Vertical FOV
• Diagonal FOV

---

Why FOV Matters

Choosing the wrong FOV creates expensive problems.

Too narrow:

• More blind spots
• More cameras required
• Higher installation cost

Too wide:

• Excessive distortion
• Reduced recognition accuracy

A professional lens selection process always considers:

• Target distance
• Detection area
• Object size
• Recognition requirements

---

3. Aperture (F-number): The Lens’s Ability to Capture Light

The aperture is one of the most misunderstood specifications.

The F-number represents the ratio between:

• Lens focal length
• Entrance pupil diameter

The smaller the F-number:

→ The larger the aperture
→ The more light enters the lens

---

Common Aperture Values

---

Why Aperture Matters

Low-light environments create challenges:

• Increased sensor noise
• Longer exposure time
• Motion blur

A larger aperture helps by providing more optical information before electronic amplification.

This is why high-performance applications increasingly focus on large-aperture lenses.

---

4. Sensor Compatibility: The Lens and Sensor Must Work Together

A common mistake engineers make is selecting a lens based only on focal length.

A lens must also match the sensor format.

Common sensor sizes include:

• 1/4"
• 1/3"
• 1/2.7"
• 1/2"
• 1/1.8"
• 1/1.2"

---

What Happens When They Do Not Match?

Lens Image Circle Too Small

Result:

• Dark corners
• Vignetting
• Lost pixels

---

Lens Designed for Smaller Sensor Used on Larger Sensor

Result:

• Reduced image quality
• Poor edge performance

---

Professional optical matching requires considering:

• Sensor diagonal
• Pixel size
• Chief ray angle
• Image circle

---

5. Distortion: The Difference Between Wide and Usable

Distortion describes how much straight lines become curved in an image.

The most common type:

Barrel Distortion

Typical in:

• Wide-angle lenses
• Fisheye lenses



---

Distortion is not always bad.

For example:

FPV drone lenses often intentionally use strong wide-angle distortion to create immersive vision.

However:

Applications such as:

• Measurement systems
• License plate recognition
• Machine vision

require better distortion control.

The key is not eliminating distortion completely.

The key is controlling distortion according to application needs.

---

6. MTF: Measuring Real Optical Performance

MTF (Modulation Transfer Function) is one of the most important optical evaluation methods.

It describes how well a lens transfers contrast from an object to an image.

Simply:

Higher MTF = Better ability to reproduce details.

---

Why MTF Matters

Two lenses may have:

• Same focal length
• Same aperture
• Same resolution rating

But completely different image quality.

Why?

Because optical performance depends on:

• Glass quality
• Lens structure
• Coating technology
• Manufacturing precision

MTF reveals the real optical capability.

---

7. CRA (Chief Ray Angle): Critical for Modern Sensors

CRA describes the angle of incoming light rays reaching the sensor.

Modern CMOS sensors are highly sensitive to CRA.

Incorrect CRA matching may cause:

• Color shading
• Reduced brightness
• Image degradation

This parameter is especially important for:

• Automotive cameras
• Machine vision
• High-resolution sensors

---

8. TTL and Mechanical Design Parameters

Optical performance is not the only consideration.

Engineers must also consider mechanical compatibility.

Important parameters include:

TTL (Total Track Length)

The optical distance from the first lens surface to the image plane.

Important for:

• Camera module design
• Space-limited applications

---

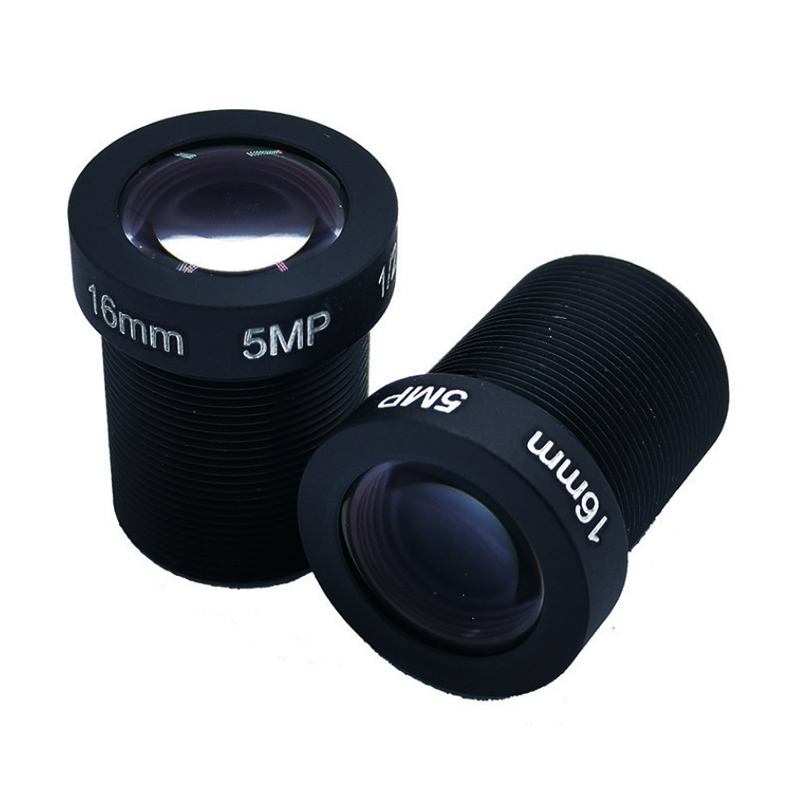

Mount Type

Common interfaces:

• M12 mount
• CS mount
• C mount
• F mount
• Custom mounts

The mount determines mechanical integration.

---

9. Relative Illumination: Image Quality Across the Frame

Relative illumination describes brightness consistency from the center to the edge.

Poor relative illumination causes:

• Dark corners
• Uneven image brightness

This is especially important for:

• Wide-angle lenses
• Surveillance cameras
• AI vision systems

A good lens should maintain consistent illumination across the image.

---

10. The Most Common Mistake: Choosing Specifications Instead of Solutions

One of the biggest mistakes engineers make is comparing lenses only by numbers.

For example:

“Lens A has higher resolution, so it must be better.”

Not necessarily.

A successful lens selection considers the complete system:

• Sensor
• Lighting environment
• Working distance
• AI requirements
• Image processing capability

The best lens is not the one with the highest specification.

It is the one optimized for the application.

---

How Engineers Should Evaluate a Camera Lens

Before selecting a lens, ask:

Application Questions

• What objects need to be detected?
• What is the working distance?
• What lighting conditions exist?
• Is color information important?
• Is AI analysis involved?

---

Optical Questions

• Is the FOV sufficient?
• Is aperture large enough?
• Does the sensor match?
• Is distortion acceptable?
• Is edge performance important?

---

System Questions

• Is size limited?
• Is temperature stability required?
• Is long-term reliability important?

---

Conclusion: Understanding Lens Specifications Creates Better Imaging Systems

Camera lens specifications are not just technical numbers.

They represent optical decisions that directly affect system performance.

A well-selected lens can improve:

• Image quality
• AI accuracy
• System reliability
• Product competitiveness

A poorly selected lens can limit even the most advanced camera and algorithm.

In modern imaging systems, engineers are not simply choosing a piece of glass.

They are choosing the foundation of visual intelligence.

---

Final Insight

A sensor captures pixels.

An algorithm processes information.

But the lens determines what information exists in the first place.

Better optical understanding leads to better engineering decisions.
