Why CRA < 15° Is the Secret Ingredient to Flawless 5MP Imaging: A Case Study with PL057

What Exactly is CRA, and Why Should You Care?

Think of your image sensor not as a flat canvas, but as a massive, ultra-modern stadium. Each pixel is a very specific seat, and each color element (Red, Green, Blue) is a distinct section of seats. Your goal is for fans (light rays) to enter the stadium and find their precise seat perfectly.

The Chief Ray Angle (CRA) is the maximum angle at which the outermost light rays (the "fans" from the edges of the image) strike the sensor pixels.

• A High CRA (e.g., >25°): It’s a chaotic rush of fans trying to enter the lower-level seats at a sharp, disastrous angle, crashing into barriers and other seats.

• A Low CRA (<15°): It's a well-organized, straight-on line of VIPs finding their seats without any spillover or crosstalk.

5MP: The High-Resolution, Fussy-Pixel Challenge

As sensor resolution increases to 5MP on a standard 1/2.7" sensor, the physical size of each individual pixel gets much smaller and deeper. They are fussy about how light enters them.

When a lens has a high CRA, the light rays from the edge of the lens are bent too sharply as they hit the outer pixels. Instead of landing perfectly within their own red, green, or blue sub-pixel sensor, they bounce off the side walls or spill over into the neighboring sub-pixel of a different color.

The Result is a Disastrous Phenomenon Known as "Pixel Crosstalk":

• Blurred Edges: Fine details on the edge of your frame get muddied. A license plate number, for example, might become unreadable because the characters are bleeding into each other.

• Color Fringing (Ghosting): You’ll see annoying purple or blue halos around edges, caused by different colors hitting the wrong pixels.

• Poor Contrast: The overall image looks flatter and less clear because of this unwanted mixing of light.

The Low CRA < 15° Sweet Spot

This is why, for 5MP imaging, a CRA of under 15° is non-negotiable. This precise angle ensures that even on the narrowest and deepest high-resolution pixels, the light enters "straight enough" to find its home, completely eliminating the confusion and crosstalk caused by sharp angles. It unlocks the true resolution of your sensor.

Case Study: Introducing the PL057, a Masterclass in Engineered CRA Control

You can’t just buy any off-the-shelf M12 lens for 5MP. You need a lens that has been specifically engineered with this critical metric in mind.

Take our PL057 Series Lens as a prime example of doing it right. It's not just a general-purpose 4mm lens; it’s a high-definition component crafted with precision CRA < 15°. Let's look at why it’s the perfect match for your high-resolution 5MP sensor projects.

Key Features of the PL057:

• Targeted Sensor Size: Designed perfectly for 1/2.7" sensors, ensuring a seamless optical marriage with the industry's most popular high-res chips.

• Optimized CRA < 15°: This is the core achievement. At Shanghai Silk Optical Technology Co., Ltd., our designers have meticulously optimized the optical path. Light rays are guided to enter the sensor at a much shallower angle, so even at 5MP resolution, crosstalk is eliminated, ensuring razor-sharp, uniform edge-to-edge clarity and correct color rendering.

• Masterpiece 1G3P Hybrid Structure: Instead of using an all-glass structure (which would be overkill and very expensive for an F2.0 lens), the PL057 employs a 1G3P (1 Glass, 3 Plastic) design. This is a deliberate choice of optimized engineering.

  • Strategic Glass Element: A single, high-precision glass element is strategically placed in the optical path to perform the critical color correction and thermal stabilization duties.

  • Precise Plastic Molds: The remaining three plastic elements are formed in ultra-precise molds, allowing for complex geometries that are perfect for manipulating the CRA < 15°, all while maintaining production efficiency. This hybrid structure delivers premium 5MP performance at a highly competitive manufacturing cost.

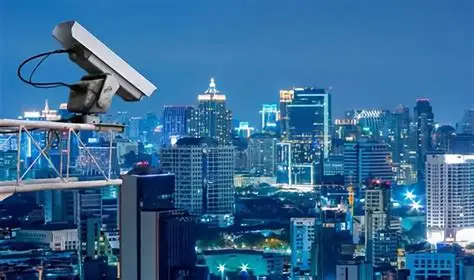

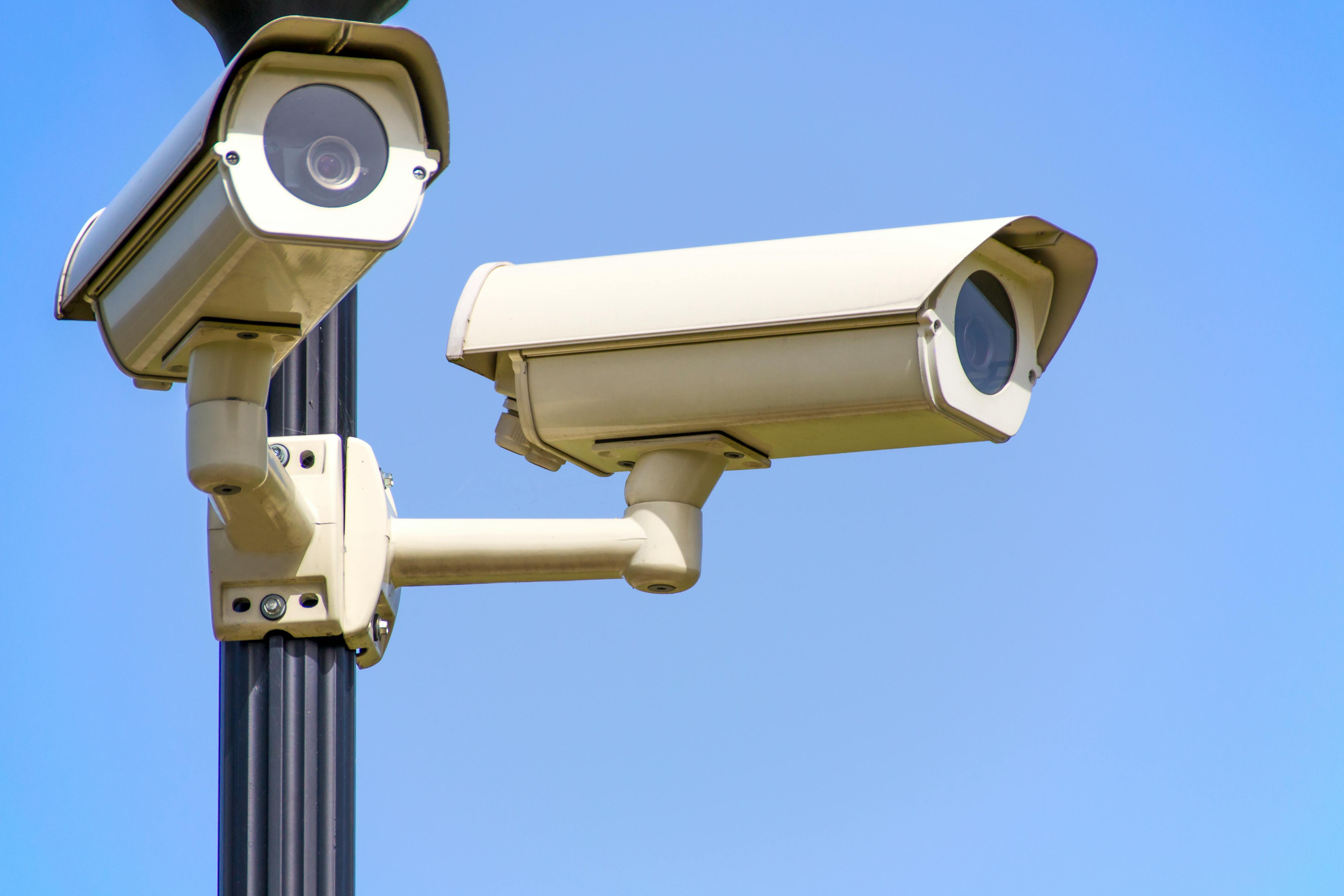

• General-Purpose Performance: With an F2.0 aperture, a controlled TV distortion (-18%), and a wide 83° horizontal FOV, the PL057 is an ideal, cost-effective workhorse lens for high-definition security, smart robotics, and high-end industrial vision applications.

The Verdict for Procurement and Product Engineers

Don't bottleneck your 5MP sensors. Buying megapixels without checking the lens's CRA is like putting a world-class engine in a car with flat tires. For sharp, color-accurate, high-definition footage across the entire frame, a CRA < 15° is the silent, essential spec you must verify.

The PL057 is our proven answer to this challenge. It provides the engineered precision needed to make your 5MP investment truly pay off, all in a smartly balanced hybrid package.

(Is your 5MP project struggling with blurry edges and color crosstalk? It's time to check your CRA. )
