China M12 lens Manufacturers, Suppliers, Factory

Large aperture starlight monitoring lens F1.6-4mm M12 Security Monitoring Board Lens 1/2.7"，Low illumination

The PL-1645F-M12 from BOSHI Optical Technology is a compact 16mm focal length, F4.5 aperture fixed-focal lens engineered specifically for 1/2" format sensors. Designed with a 4-glass-element all-glass construction, this M12-mount lens delivers a 28.3° diagonal field of view and supports a maximum image circle of Ø8.5mm, making it an ideal match for 1/2" and smaller imagers in space-constrained vision systems. With a mechanical back focal length of 3.65mm and total track length of just 28.65mm, the PL-1645F-M12 integrates seamlessly into board-level camera modules for industrial inspection, biometric identification, and embedded imaging applications. BOSHI Optical Technology has optimized this 16mm F4.5 lens for superior edge-to-edge illumination, achieving 95% relative illumination and ultra-low TV distortion of -0.25%, ensuring faithful image reproduction even in high-contrast scenes. The chief ray angle is strictly controlled below 8°, minimizing vignetting and color shift when paired with modern CMOS sensors. Whether used in factory automation, logistics barcode readers, or medical imaging devices, this 1/2" sensor lens offers a balanced blend of resolution, compactness, and cost-effectiveness. Trust BOSHI Optical Technology to deliver reliable optical performance for your next-generation vision product, with the PL-1645F-M12 setting the benchmark for precision in the M12 lens category.

8.0mm 1/2.7" M12 Lens PL069 Manual Focus Lens, and all products have been tested by MTF instruments, resulting in higher consistency compared to products from other suppliers. You can rest assured to purchase standard M12 lenses from our factory.

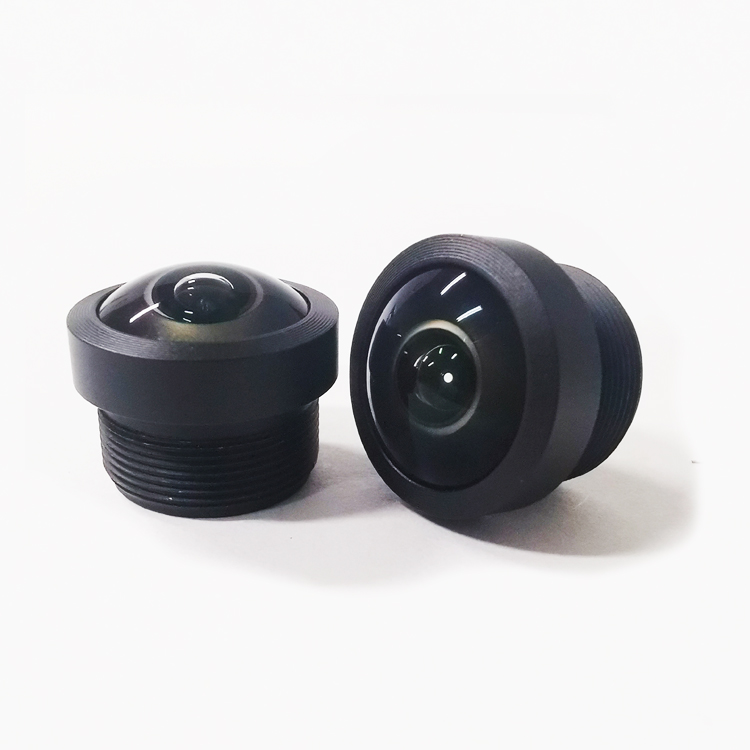

BOSHI Optical Technology delivers a premium 1.5mm fisheye lens engineered for 1/4 inch AR0144 image sensors, offering outstanding ultra wide angle imaging capability for compact optical devices. This F2.2 M12 mount lens features a 200 degree diagonal field of view, capturing expansive scenes with minimal blind spots to meet the demand for full coverage monitoring and detection in limited installation space.With a total track length of 13.03mm and a standard M12 mount, this lens fits seamlessly into most board level camera designs, making installation and integration simple for various device manufacturers. The maximum image circle of 4.4mm fully covers the sensing area of 1/4 inch sensors, ensuring no obvious vignetting on the active imaging region. Its chief ray angle stays below 18 degrees, which matches well with the sensor microlens array and reduces image shading at the frame edges.This 1.5mm fisheye lens maintains 65 percent relative illumination, delivering more uniform brightness across the whole image plane for clearer detail recognition in both center and corner areas. Produced with strict quality control by BOSHI Optical Technology, this reliable M12 mount lens serves as an ideal optical solution for security, automotive and consumer electronics products that require broad field of view and stable long term optical performance.

Our 110 degrees 1/9 Inch Endoscope Lens has high sales, with a production capacity of 30K/month, a depth of field of 5-60mm, a wide range of applications, and stable and reliable lens quality.

Standard M12 F1.6 2.8mm 1/2.7" Lens, and all products have been tested by MTF instruments, resulting in higher consistency compared to products from other suppliers. You can rest assured to purchase standard M12 lenses from our factory.
